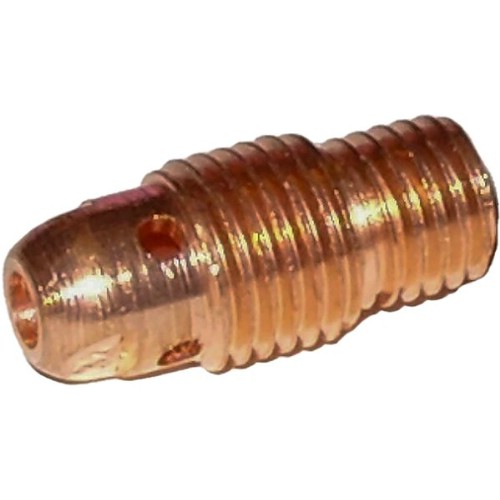

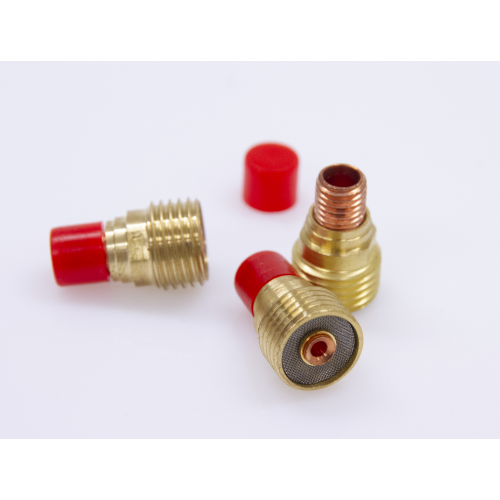

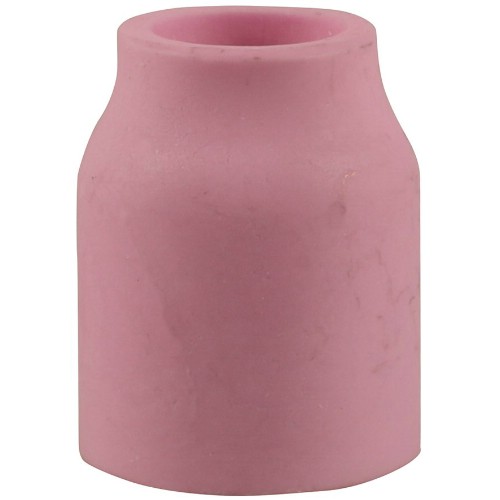

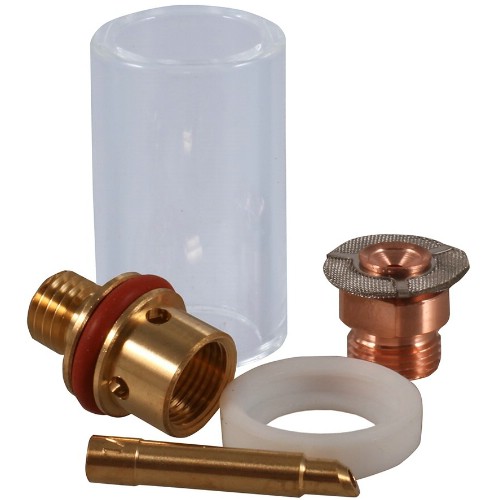

Slit och reservdelar passande TIG Lilla Linde med gaslins.

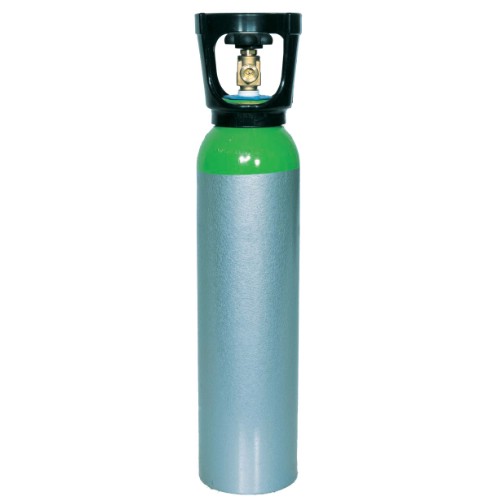

Easy gas bottle to carry and handle. With quick connection, built-in regulator and constant display of the amount of content. Buy bottle - no rental agreement.
When buying a gas bottle package, bottle, gas filling, coupling and built-in regulator are included.
When buying a new bottle, quick coupling and built-in regulator are included. Gas filling not included.
When purchasing gas filling, quick coupling is not included.
Pressure: 200 bar
Max welding time:
S05: 60 min< br>S11: 135 min

(HTML text not available)

Easy gas bottle to carry and handle. With quick connection, built-in regulator and constant display of the amount of content. Buy bottle - no rental agreement.
When buying a gas bottle package, bottle, gas filling, coupling and built-in regulator are included.
When buying a new bottle, quick coupling and built-in regulator are included. Gas filling not included.
When purchasing gas filling, quick coupling is not included.
Pressure: 200 bar.
Max welding time:
S5: 60 min
S11: 135 min

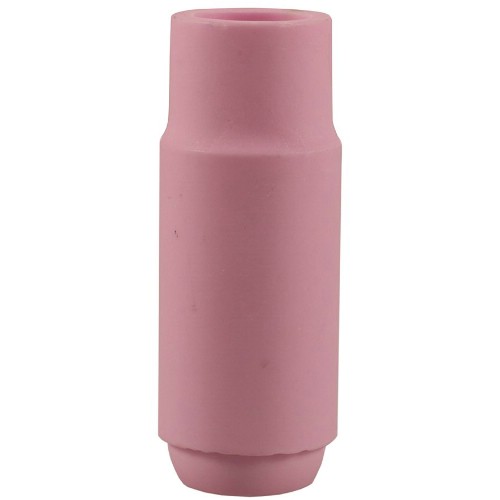

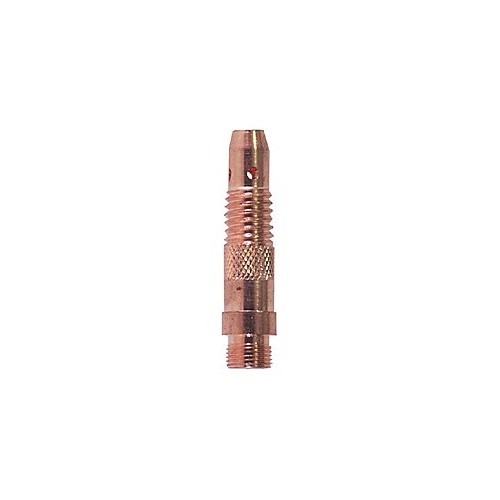

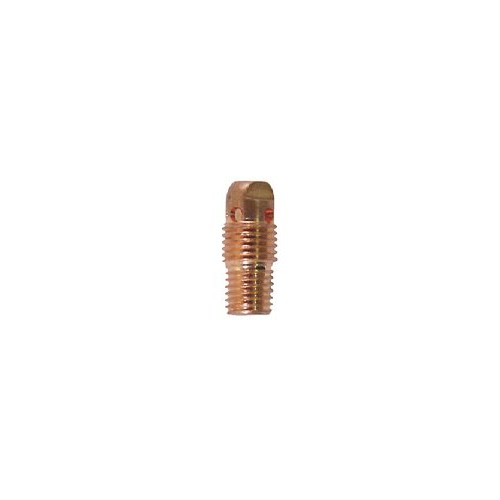

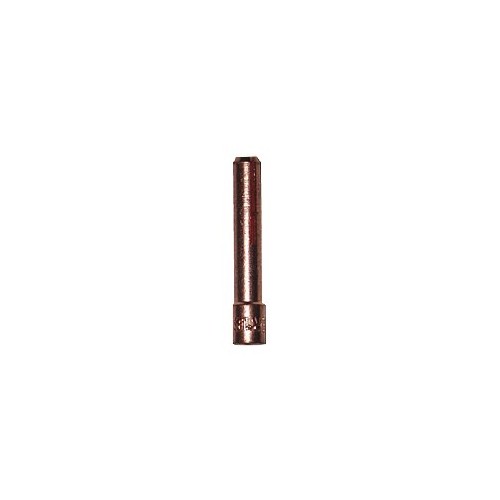

Wear parts for TIG torches with a small torch head.

A seamless rutile tube wire for unalloyed and low-alloyed steel with requirements for impact strength down to -40°. For welding with mixed gas Ar/CO2 (M21). The wire is easily welded and has a very stable arc that produces a minimum of spatter and gives a good strand appearance with a smooth transition to the base material. Suitable for welding against ceramic backing. Mechanical values ??down to -40° Very low hydrogen content. The same welding parameters can be used in most modes. Safe and even wire feeding thanks to roundness and a copper-coated surface.
Current type:
DC+
Electrode class:
AWS: A5-20 E71T- 9M-J
EN ISO 17632-A: T 46 4 Z P M 1 H5
Typical chemical values ??in weld metal %:
C: 0.05, Si: 0.50, Mn: 1.50, P: 0.010, S: 0.006, Cu: 0.30, Ni: 0.35.
Mechanical values:
Tensile strength: 547 Mpa
Breaking strength : 612 Mpa
Elongation: 25%
Impact toughness:
Test temperature: -20° C
Impact toughness value Charpy V (J):: 110
Test temperature: -40 ° C
Impact strength value Charpy V (J):: 70
Approvals:
DNV, LR, ABS, GL, CWB, DB, TUV.

(HTML text not available)

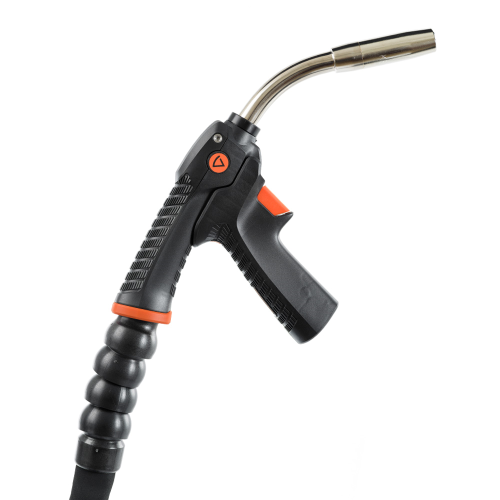

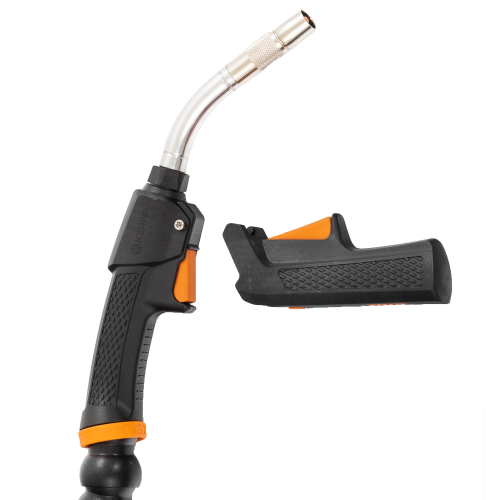

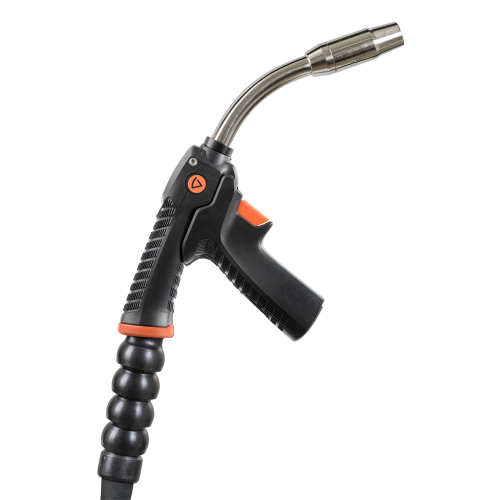

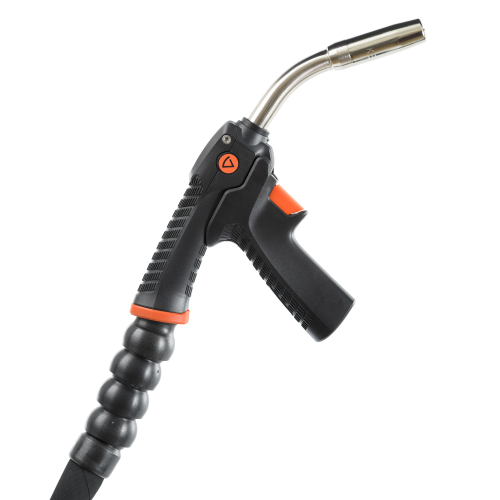

Flexlite GXe är Kemppis nyutvecklade avancerade MIG/MAG-svetspistol, känd för sin hållbarhet och högpresterande svetsning. Med en 6 månaders garanti, erbjuder dessa pistoler en lång livslängd och kostnadseffektiv användning. Designen är framtagen baserad på kundfeedback, vilket resulterat i en robust konstruktion med bättre balans och skydd mot damm och fukt. GXe-pistolen är även kompatibel med ett stort urval av tillbehör.

GXe modellerna har en mindre storlek för ökad användarkomfort och en förbättrad kulled för tillförlitlig trådmatning. Dessutom har pistolhalsen uppgraderats för bättre kylning och längre livslängd på slitdelar vilket minimerar störningar och ger en stabilare ljusbåge.

GXe-svetspistolens tillbehör inkluderar det nya GRe50-fjärreglaget för serie 5 vilket erbjuder förbättrad ergonomi och enkel installation. Ett nytt värmeskydd för handtaget maximerar handskyddet, tillgängligt för både standardhandtaget och det valfria extra pistolhandtaget. Flexlite GXe är alltså en idealisk svetspistol för de som söker effektivitet och komfort i sitt svetsarbete.

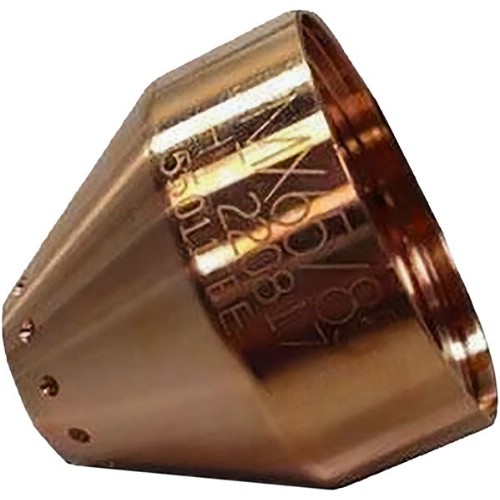

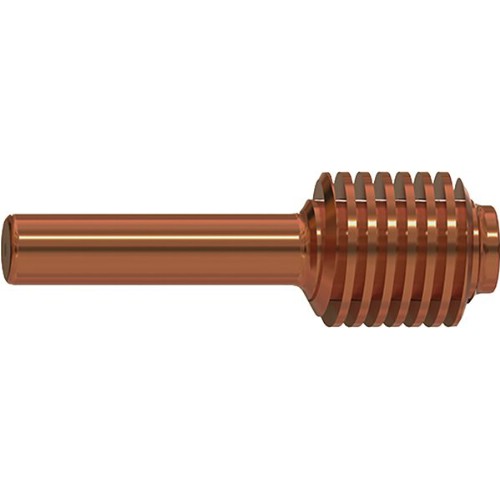

Slitdelar till Hypertherm PMX 65/85 handhållna.

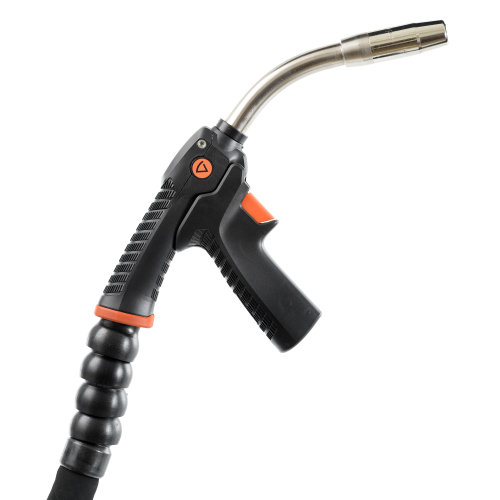

Flexlite GXe är Kemppis nyutvecklade avancerade MIG/MAG-svetspistol, känd för sin hållbarhet och högpresterande svetsning. Med en 6 månaders garanti, erbjuder dessa pistoler en lång livslängd och kostnadseffektiv användning. Designen är framtagen baserad på kundfeedback, vilket resulterat i en robust konstruktion med bättre balans och skydd mot damm och fukt. GXe-pistolen är även kompatibel med ett stort urval av tillbehör.

GXe modellerna har en mindre storlek för ökad användarkomfort och en förbättrad kulled för tillförlitlig trådmatning. Dessutom har pistolhalsen uppgraderats för bättre kylning och längre livslängd på slitdelar vilket minimerar störningar och ger en stabilare ljusbåge.

GXe-svetspistolens tillbehör inkluderar det nya GRe50-fjärreglaget för serie 5 vilket erbjuder förbättrad ergonomi och enkel installation. Ett nytt värmeskydd för handtaget maximerar handskyddet, tillgängligt för både standardhandtaget och det valfria extra pistolhandtaget. Flexlite GXe är alltså en idealisk svetspistol för de som söker effektivitet och komfort i sitt svetsarbete.

Wear parts for TIG torches with large torch heads. Fits TTK 160, 220, 220S, 350W, TTC 160, 220 and 250W.

Flexlite GXe är Kemppis nyutvecklade avancerade MIG/MAG-svetspistol, känd för sin hållbarhet och högpresterande svetsning. Med en 6 månaders garanti, erbjuder dessa pistoler en lång livslängd och kostnadseffektiv användning. Designen är framtagen baserad på kundfeedback, vilket resulterat i en robust konstruktion med bättre balans och skydd mot damm och fukt. GXe-pistolen är även kompatibel med ett stort urval av tillbehör.

GXe modellerna har en mindre storlek för ökad användarkomfort och en förbättrad kulled för tillförlitlig trådmatning. Dessutom har pistolhalsen uppgraderats för bättre kylning och längre livslängd på slitdelar vilket minimerar störningar och ger en stabilare ljusbåge.

GXe-svetspistolens tillbehör inkluderar det nya GRe50-fjärreglaget för serie 5 vilket erbjuder förbättrad ergonomi och enkel installation. Ett nytt värmeskydd för handtaget maximerar handskyddet, tillgängligt för både standardhandtaget och det valfria extra pistolhandtaget. Flexlite GXe är alltså en idealisk svetspistol för de som söker effektivitet och komfort i sitt svetsarbete.

Flexlite GXe är Kemppis nyutvecklade avancerade MIG/MAG-svetspistol, känd för sin hållbarhet och högpresterande svetsning. Med en 6 månaders garanti, erbjuder dessa pistoler en lång livslängd och kostnadseffektiv användning. Designen är framtagen baserad på kundfeedback, vilket resulterat i en robust konstruktion med bättre balans och skydd mot damm och fukt. GXe-pistolen är även kompatibel med ett stort urval av tillbehör.

GXe modellerna har en mindre storlek för ökad användarkomfort och en förbättrad kulled för tillförlitlig trådmatning. Dessutom har pistolhalsen uppgraderats för bättre kylning och längre livslängd på slitdelar vilket minimerar störningar och ger en stabilare ljusbåge.

GXe-svetspistolens tillbehör inkluderar det nya GRe50-fjärreglaget för serie 5 vilket erbjuder förbättrad ergonomi och enkel installation. Ett nytt värmeskydd för handtaget maximerar handskyddet, tillgängligt för både standardhandtaget och det valfria extra pistolhandtaget. Flexlite GXe är alltså en idealisk svetspistol för de som söker effektivitet och komfort i sitt svetsarbete.

Specifikationer

Flexlite GXe är Kemppis nyutvecklade avancerade MIG/MAG-svetspistol, känd för sin hållbarhet och högpresterande svetsning. Med en 6 månaders garanti, erbjuder dessa pistoler en lång livslängd och kostnadseffektiv användning. Designen är framtagen baserad på kundfeedback, vilket resulterat i en robust konstruktion med bättre balans och skydd mot damm och fukt. GXe-pistolen är även kompatibel med ett stort urval av tillbehör.

GXe modellerna har en mindre storlek för ökad användarkomfort och en förbättrad kulled för tillförlitlig trådmatning. Dessutom har pistolhalsen uppgraderats för bättre kylning och längre livslängd på slitdelar vilket minimerar störningar och ger en stabilare ljusbåge.

GXe-svetspistolens tillbehör inkluderar det nya GRe50-fjärreglaget för serie 5 vilket erbjuder förbättrad ergonomi och enkel installation. Ett nytt värmeskydd för handtaget maximerar handskyddet, tillgängligt för både standardhandtaget och det valfria extra pistolhandtaget. Flexlite GXe är alltså en idealisk svetspistol för de som söker effektivitet och komfort i sitt svetsarbete.

Easy gas bottle to carry and handle. With quick connection, built-in regulator and constant display of the amount of content. Buy bottle - no rental agreement.
When buying a gas bottle package, bottle, gas filling, coupling and built-in regulator are included.
When buying a new bottle, quick coupling and built-in regulator are included. Gas filling is not included.
When purchasing gas filling, quick coupling is not included.
Gas consumption: 160 l/h
Max consumption time:
S05: 6 hours
S10: 14 hours

Easy gas bottle to carry and handle. With quick connection, built-in regulator and constant display of the amount of content. Buy bottle - no rental agreement.
When buying a gas bottle package, bottle, gas filling, coupling and built-in regulator are included.
When buying a new bottle, quick coupling and built-in regulator are included. Gas filling is not included.
When buying a gas filling, quick coupling is not included.
Gas consumption: 160l/h
Max consumption time:
S05: 6 hours
S11: 14 hours

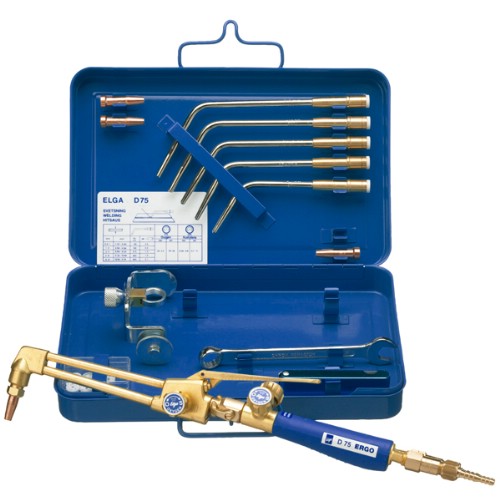

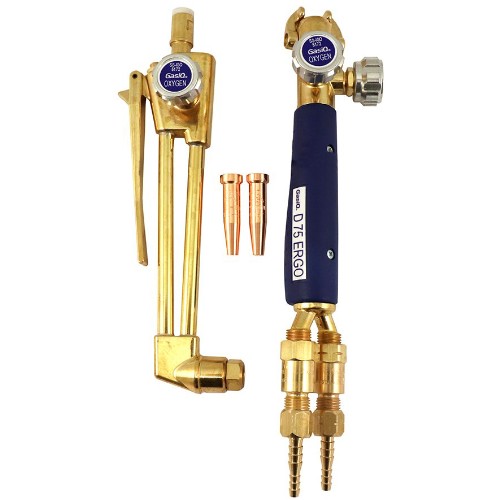

Set with welding and cutting torches. The handle D75 ERGO works according to the injector principle, which means that oxygen sucks with fuel gas (acetylene) into the burner. The advantage is that it is very easy to set the mixing ratio between the gases. Ergonomic handle combines good design with good grip and controllability for the welder. Other components are inserts for cutting, welding, soldering and heating. All components are interchangeable with other equivalent burner systems on the market. Delivered in a robust tin box together with operating and care instructions.
Contents:
Handle D75 ERGO complete
Welding insert 80 l/h
Welding insert 160 l/h
Welding insert 315 l/h
Welding insert 500 l/h
Welding insert 800 l/h
Cutting insert with knob valve, nozzle attachment 90°
Stick flame nozzle 1-3 mm
Stick flame nozzle 3-8 mm
Stick flame nozzle 8-20 mm
Stick flame nozzle 20-50 mm
Cutting support 2 wheels

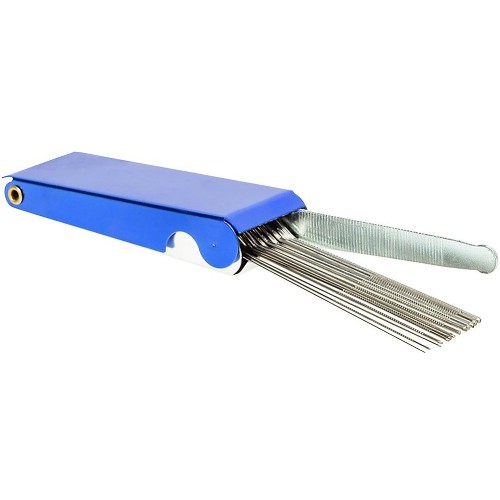

Cleaning needle set
Fixed key, 15 mm
Data card D75

Small plasma system with low weight for cutting 16 mm material thickness, chiseling and marking. Hand-held and mechanized use with CNC interface and FastConnect™ connection to torches. No need to change the air pressure, Smart Sense technology ensures it is always set correctly. Quick replacement of wear parts using the new burner switch function. SpringStart™ technology ensures reliable starts.
Mains connection: 400 V, 3-phase CE.

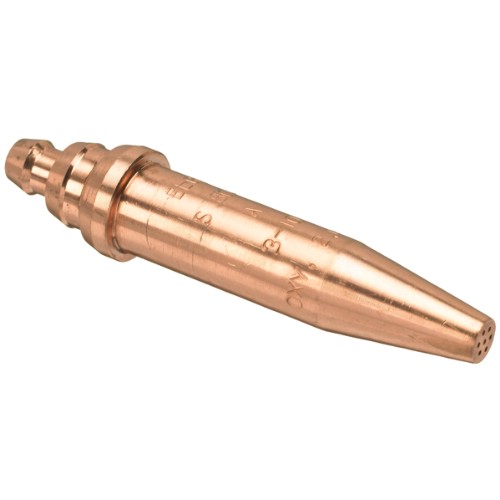

3-cone sealing flame nozzle for S80 and Cuttex. Contagion from a piece of copper. For all kinds of cutting up to 300 mm. Also suitable for burners of other makes.
Working pressure refers to: Fuel gas / Oxygen.

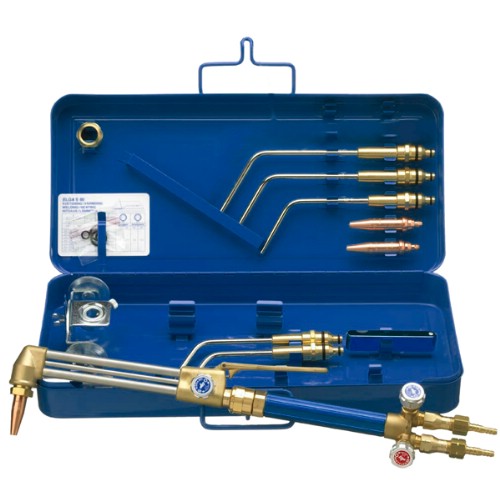

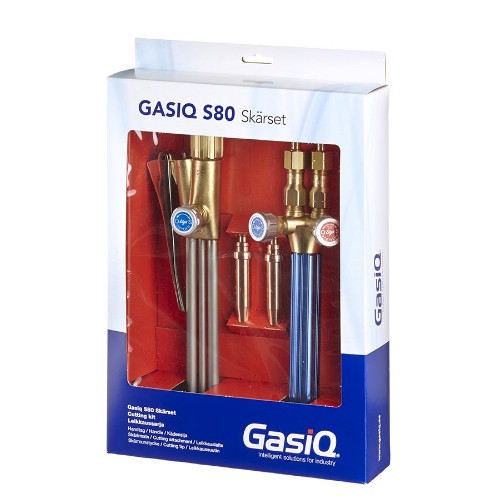

Set with welding and cutting torch adapted for medium and heavier work, e.g. in the demanding off-shore industry. All included components are interchangeable with other equivalent systems on the market. The powerful burner system is designed according to the pressure principle. All details are manufactured with great precision and accuracy to enable high quality of the work performed. Delivered in a robust tin box together with operating and care instructions.
Contents:
Handle S80 complete
Welding insert 80 l/h
Welding insert 230 l/h
Welding insert 400 l/h
Welding insert 650 l/h
Welding insert 1000 l/h
Welding insert 1250 l/h
Cutting insert with lever valve, nozzle attachment 90°
Stick flame nozzle 3-10 mm
Stick flame nozzle 10 -25 mm
Stick flame nozzle 25-50 mm
Circular cutting support
Cutting support 2 wheels
Cleaning needle set
Data card S80

(HTML text not available)

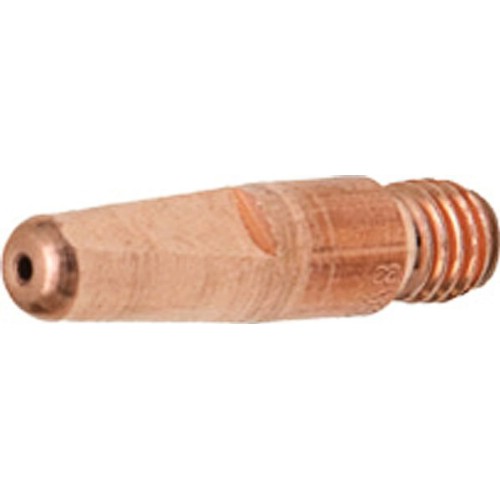

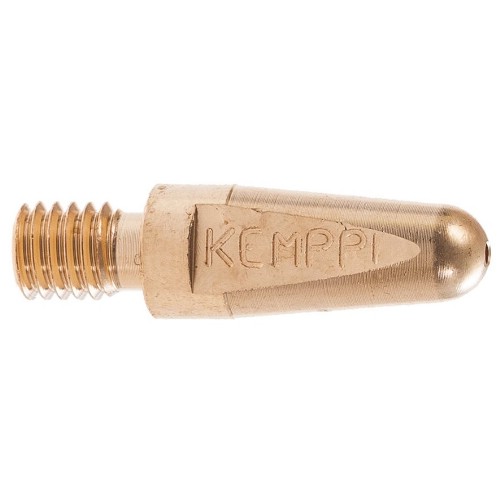

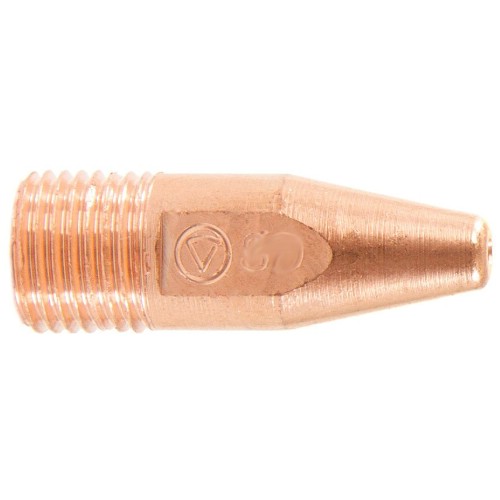

Contact nozzle KEMPPI 1,2 C1 standard M10.

Fits GX303G35, GX303G5, GX403W35, GX403W5, GX305G35, GX305G5, GX305GS6*, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8 *, GX403G35, GX503W35, GX503W5, GX405G35, GX405G5, GX505W35, GX605W5 GX408GMN35, GX408GMN5 GX528W35, GX528W5, GX528W35N250, GX528W5N250 GX60 8W5 GX428WS8*

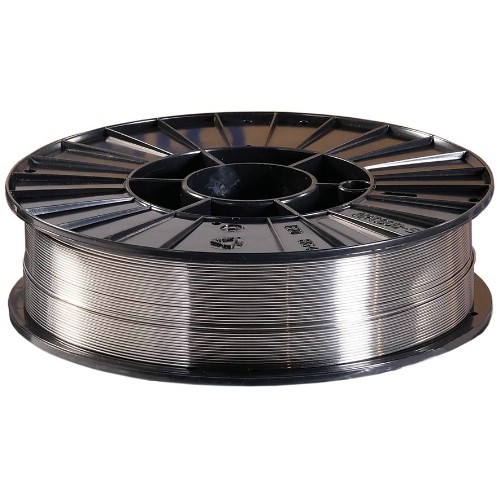

Extra low-carbon stainless steel welding wire for TIG welding of stainless steels containing approx. 18 Cr, 12 Ni, 3 Mo. (Tigrod 16.32). Recommended for eg AISI 316, 316L and 1.4436 (SS2343), 1.4435 (SS2353) or equivalent stainless steels according to other standards. The increased content of silicon leads to better welding properties.
Type of current:
DC-
Example of the corresponding additive material:
MAG: OK Autrod 16.32< BR>MMA: OK 63.20, 63.30, 63.34, 63.35, 63.41
Tube wire: OK Tubrod 14.21, 14.31, 15.31
Electrode class:
EN 12072: W 19 12 3 LSi
SFA/AWS A5.9-9: ER316LSi
W. No.: 1.4430
Typical values ??of all-weld material:
Chemical composition %:
C: 0.01, Si: 0.8, Mn: 1.8, Cr: 18, Ni: 12, Mo: 2.8
Mechanical values:
Tensile strength (Rp0.2): 480 MPa
Breaking strength (Rm): 630 MPa
Elongation (A5): 33%
Impact strength, KV:
Test temperature/Impact strength value: +20°C/ 175 J, -110°C/ 150 J, - 196°C/110 J
Approvals:
CE: EN 13479, DB: 43.039.06, DNV: 316L (-196°C), GL: 4429, VdTÜV:  05336

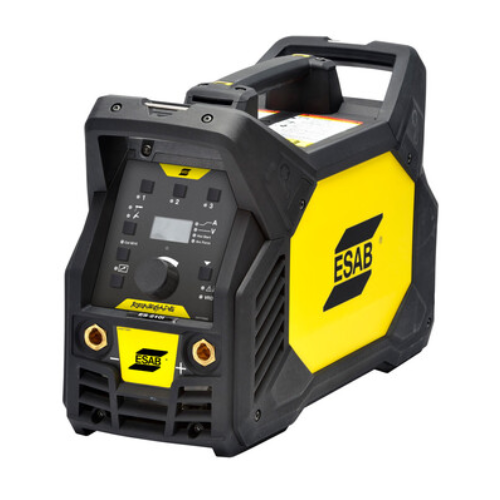

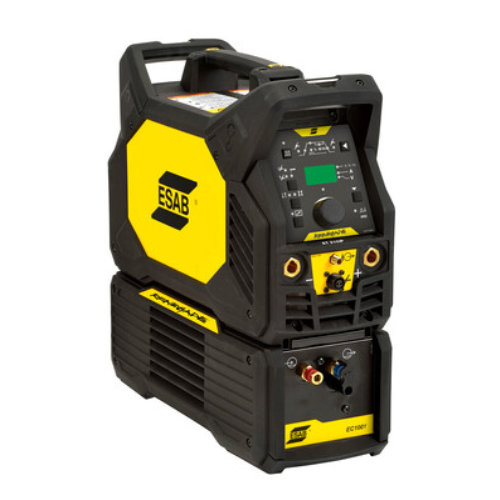

Renegade ET är en professionell 1-fas TIG- och MMA-svetsmaskin med högfrekvent (HF)-start och det mest motståndskraftiga IP23-höljet som är utformat för att användas i krävande miljöer. Renegade är utrustad med en högkvalitativ bärrem med flera lyftpunkter och är redo att flytta med dig när bärbarhet krävs. Renegade ET har en inbyggd aktiv PFC-krets som gör det möjligt att fungera perfekt även med en strömförsörjning av dålig kvalitet och med mycket långa förlängningskablar (upp till 100 m). Överlägsen svetskvalitet är en prioritet i detta sortiment, och stöds dessutom av direkt åtkomst till breda parameterval på enkelt och intuitivt användargränssnitt gör maskinen mycket lätt att arbeta med.

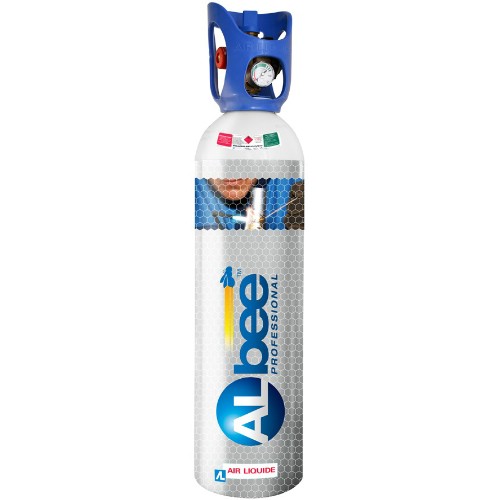

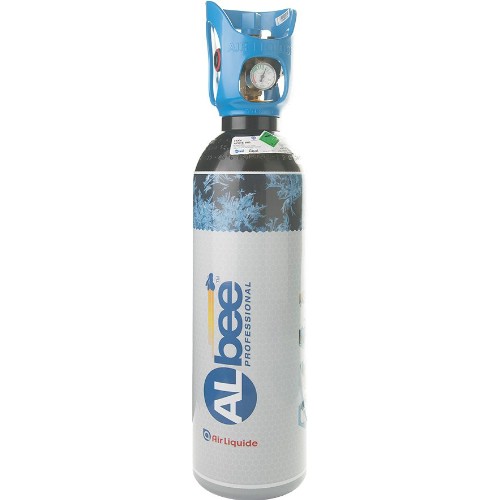

ALbee Cool has a built-in high-pressure regulator with a working pressure of up to 50 bar. Perfect for you with a smaller need for gas for pressure testing and leak detection. Easy gas bottle to carry and handle. With quick connection, built-in regulator and constant display of the amount of content. Buy bottle - no rental agreement.
When buying a gas bottle package, bottle, gas filling, coupling and built-in regulator are included.
When buying a new bottle, quick coupling and built-in regulator are included. Gas filling is not included.
When buying a gas filling, quick coupling is not included.

Complete package with welding helmet G5-01, auto-dimming welding glasses G5-01VC and Adflo fan-assisted respirator.
Welding helmet with high comfort and low weight, headband with self-adjusting forehead relief, adjustable air channel system and face seal with easy and safe adjustment. Designed for heavy duty high current welding such as MMAW, MIG/MAG, TIG welding as well as plasma cutting and grinding. Flip-up function that makes it easy to switch between welding and grinding while maintaining fan-assisted breathing protection.
Welding glasses with adjustable dark tightness degrees 5 (cutting) and 8-14. Bright mode with density level 3. Turnover time from light to dark in 0.1 ms. Viewing surface when welding 73x109 mm, viewing surface for grinding visor 170x104 mm. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Variable Color technology, choose between shades of natural (A), cool (B) or warm (C) for dark mode. Choose yourself which color tones give the best contrast when welding and feel most comfortable to the eyes. Easy-to-use control panel, where you manage the functions easily. Powered by 1 pc 3 V Lithium battery (CR2450). The welding glass is also equipped with a Bluetooth function, easily paired with a smartphone. With the 3M Connected Equipment app, there is access to additional functions; Program up to ten memory settings (dark density, sensitivity, delay, etc.). Easy to keep a log in the app of the maintenance of your welding helmet. Statistical information immediately: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off). Access the user manual and accessory lists.
Comes complete with welding helmet G5-01, welding glasses G5-01VC, Adflo high altitude fan unit with QRS self-adjusting air hose, adapter, air flow meter, filter, belt, heavy duty battery, charger and storage bag.< BR> Conforms to EN 175:B, EN 379, EN 166:B, EN 12941 (TH3) / NPF 500. Classification 1/1/1/2.

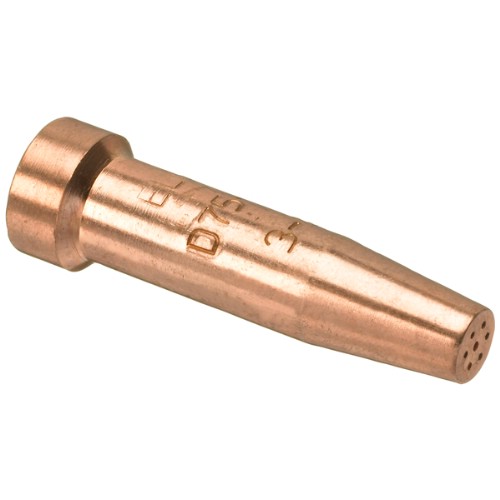

Plant-eating flame nozzle for the D75 system. Entirely made of copper. The gas channels have a precise cylindrical geometry to provide a turbulence-free cutting jet. Also suitable for burners with flat sealing from other makes.
Working pressure refers to: Fuel gas / Oxygen.

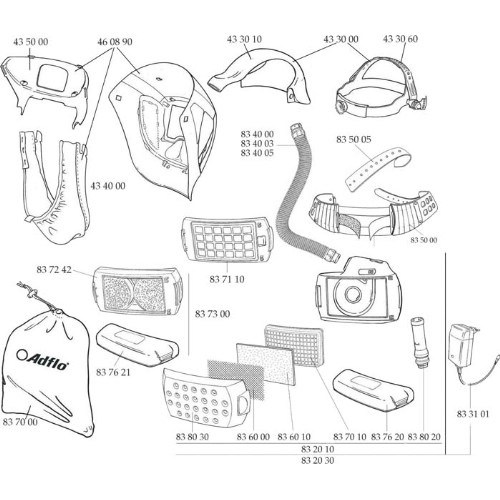

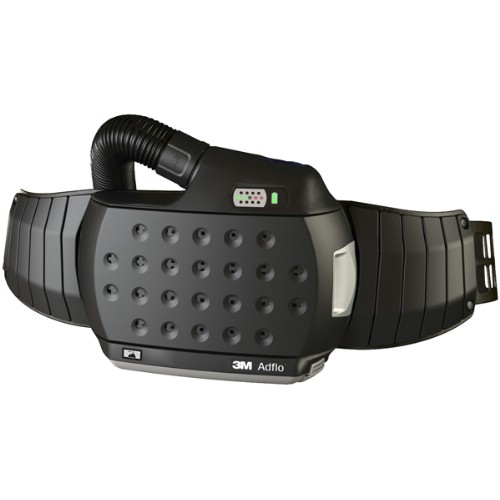

Light and compact fan unit that provides continuous air flow to the welding helmet. With QRS coupling for easy handling of the air hose. The design allows any combination of particle and gas filters for protection against specific organic, inorganic and acid gases. You can change the particle filter or the gas filter as needed. No external batteries, no battery cables and no sharp edges. Particle filter indicator shows how much filter capacity you have left. The batteries can be charged either on site in the fan unit or separately.
Used together with 3M Speedglas welding helmets prepared for Adflo. Adapter included to also fit the 9000 series.

1. Spark protection that reduces the risk of the filters igniting.
2. Pre-filter gives the particle filter longer life.
3. Particle filter in easily replaceable cassette. Despite its small dimensions, the filter has a very high degree of filtration.
4 a. ABE gas filter is available as an additional accessory in a common, easily replaceable cassette that protects against specific organic (A), inorganic (B) and acid (E) gases. The cassette is snapped directly onto the fan unit.
4 b. As an option, there is an odor filter that removes unpleasant odors when particle filters alone are used. Snaps directly onto the fan unit.
5. Specially designed, brushless motor with three times longer life than conventional fan motors.
6. Control panel that provides ongoing information about functions and operating mode. Indicates ON/Airflow-Plus/OFF, warns of low airflow and low battery voltage with sound and light signal and shows battery status.
7. Air hose connection sits parallel to the back, reducing the risk of the hose gets stuck in surrounding equipment.
8. The air hose fits all models of the welding helmet Speedglas 9000 Fresh Air.
9. The air channels in the helmet distribute the fresh air and provide an even , soft and pleasant airflow over the entire face.

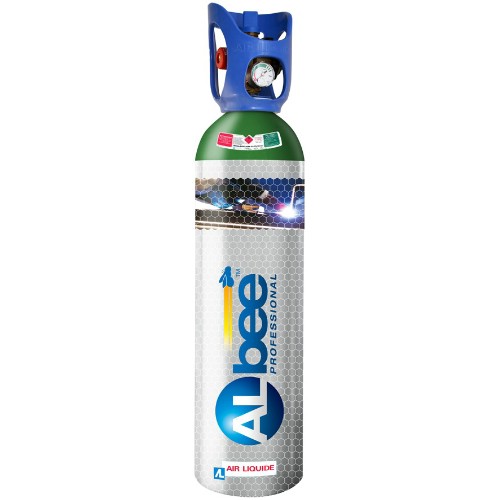

ALbee Weld ArgonMix 2% CO2 is suitable for customers with lower gas requirements or who have an itinerant business where they work with MAG welding in stainless steel. With ArgonMix 2% CO2, you get several advantages when welding stainless steel, e.g. a gives 2% CO2 a good arc stabilizing effect, it gives a good finish to the weld joint and the low content of CO2 protects against burning of the carbon in wire and material. Otherwise, ALbee Weld Argonmix 2% CO2 has the same advantages as other gas bottles in the family. Easy gas bottle to carry and handle. With quick connection, built-in regulator and constant display of the amount of content. Buy bottle - no rental agreement.
When buying a gas bottle package, bottle, gas filling, coupling and built-in regulator are included.
When buying a new bottle, quick coupling and built-in regulator are included. Gas filling is not included.
When purchasing gas filling, quick coupling is not included.
Pressure: 200 bar.

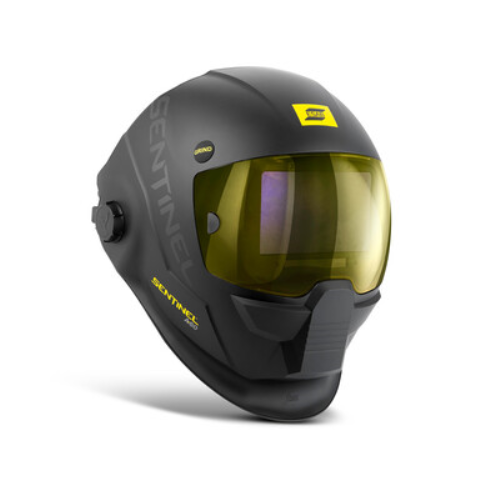

Sentinel A60 svetshjälm tar din svetsning till nästa nivå med en enorm panoramasikt och perfekt 1/1/1/1 EN optisk klarhet. Nu får du en ännu bredare sikt över smältbadet utan någon förvrängning. Det omarbetade automatiska avbländningen (auto-darkening filter, ADF) har en ny OpTCS™ ljusstyrningsteknik för brett spektrum från ESAB. Detta ger en förbättrad sikt med verklig färgåtergivning och minskad ögontrötthet för de mest krävande dagarna på jobbet. Nya justeringar av mörkhetsgrad i 0,5 steg ger dig mer exakt kontroll över din sikt. Sentinels karaktäristiska skaldesign, helt justerbara Halo™ huvudbindsle och externa sliplägesknapp fulländar den mest bekväma, högpresterande hjälmen som ESAB någonsin har producerat.

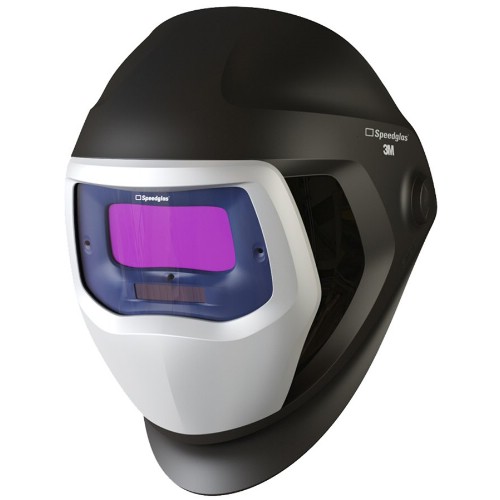

Comfortable and protective welding helmet. Automatic dimming function and a patented exhalation valve to get the exhaled air out more efficiently and quickly, which means that fogging on the welding glass is reduced. It also reduces the risk of increased heat, humidity, carbon dioxide content and foul air inside the visor. With the delay function, the user can set the desired cover time from dark to light mode. Arc detection sensitivity can be set to provide the most reliable coverage for a range of welding processes, amperages and situations. The welding glass can also be locked at the desired degree of tightness, so that it functions as a passive welding glass either in the light position for grinding or in one of the dark positions. The welding glass is powered by 2 batteries CR2032.
SW = Side window.
Welding glass 9100V - Viewing surface 45x93 mm.
Welding glass 9100X - Viewing surface 54x107 mm.
Welding glass 9100XX - Viewing surface 73x107 mm.
Welding glass 9100XXi - External control for grinding / memory modes. Improved optics that make it easier to distinguish colors. Visible surface 73x107 mm.
Conforms to EN 379.

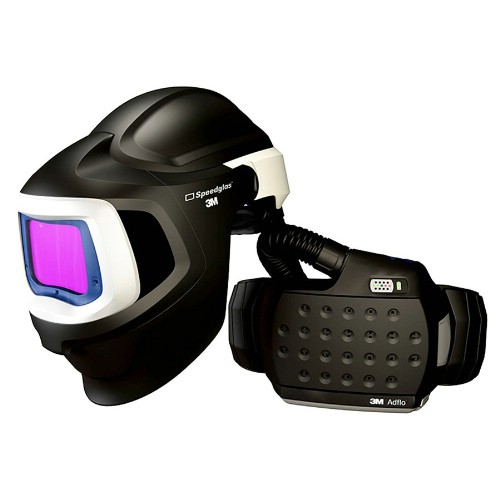

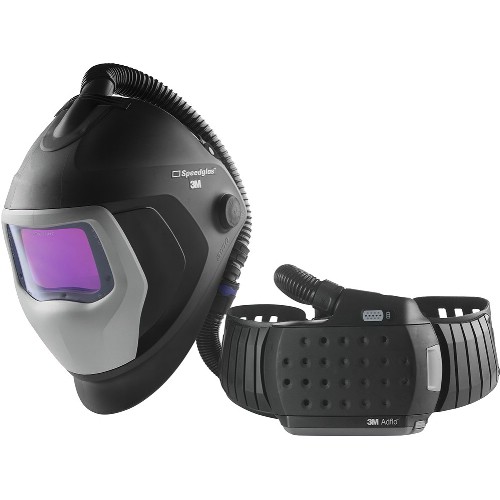

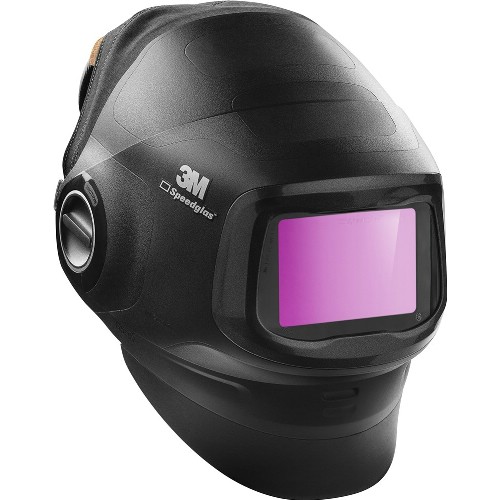

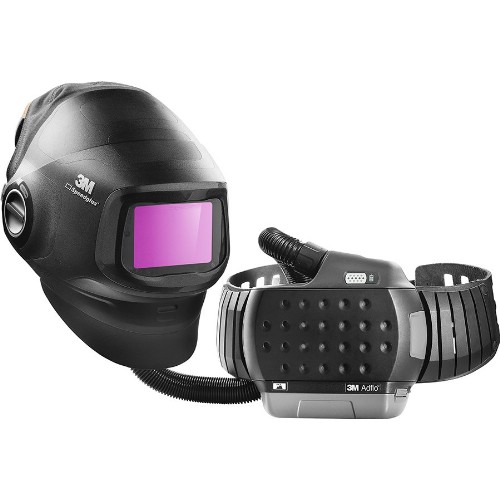

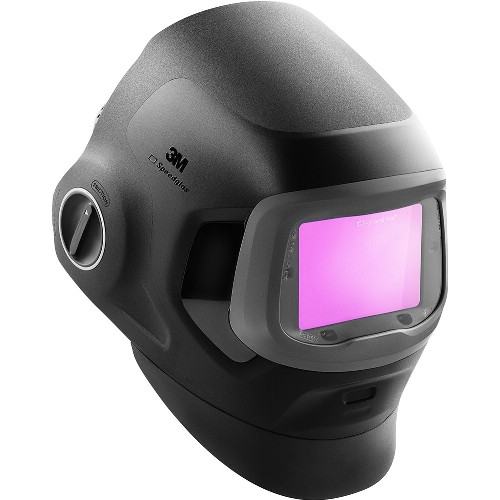

Welding helmet with automatically dimming welding glasses and Adflo fan-assisted breathing protection. Slim profile and ergonomic design. Comfortable headband with steering wheel adjustment. Adflo fan unit provides a continuous air flow, protects breathing and increases comfort throughout the working day. Integrated air channel provides airflow to the entire helmet. Quick Release Swivel makes the air hose easy to put in place with one hand. Stst field of view with side window, degree of tightness 5. Welding glass with variable degree of tightness 5, 8, 9-13 for most types of arc welding. Possibility to lock all density levels, e.g. in the bright position density level 3 when sanding. Delay function to set the dark-to-light opening time. Switching time (light-dark) 0.1 ms. Comfort mode for spot welding minimizes eye strain. External control for grinding / memory modes. Improved optics that make it easier to distinguish colors. Visible surface 73x107 mm. With the right type of filter, the Adflo respirator protects you effectively against both particles and gases. Gas filter sold separately. Supplied complete with welding helmet, welding glasses 9100XXi, 2 batteries CR2032, Adflo fan unit incl. air hose, Li-Ion battery, charger, particle filter and bag.
Conforms to EN 379, EN 175, EN 166, EN 12941.

(HTML text not available)

Gaskyld svetspistol 3m passande MinarcMig-serien

Wear parts for TIG torches with large torch heads.

Complete welding helmet with automatically dimming welding glasses. Welding helmet with high comfort and low weight, headband with self-adjusting forehead relief, adjustable air channel system and face seal with easy and safe adjustment. Designed for heavy duty high current welding such as MMAW, MIG/MAG, TIG welding as well as plasma cutting and grinding. Flip-up function that makes it easy to switch between welding and grinding. Welding glass with adjustable dark density grades 5 (cutting) and 8-14. Bright mode with density level 3. Turnover time from light to dark in 0.1 ms. Viewing surface when welding 73x109 mm, viewing surface for grinding visor 170x104 mm. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Variable Color technology, choose between shades of natural (A), cool (B) or warm (C) for dark mode. Choose yourself which color tones give the best contrast when welding and feel most comfortable to the eyes. Easy-to-use control panel, where you manage the functions easily. Powered by 1 pc 3 V Lithium battery (CR2450). The welding glass is also equipped with a Bluetooth function, easily paired with a smartphone. With the 3M Connected Equipment app, there is access to additional functions; Program up to ten memory settings (dark density, sensitivity, delay, etc.). Easy to keep a log in the app of the maintenance of your welding helmet. Statistical information immediately: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off). Access the user manual and accessory lists. Supplied complete with welding helmet G5-01, welding glass G5-01VC.
Complies with EN 175:B, EN 379, EN 166:B. Classification 1/1/1/2.

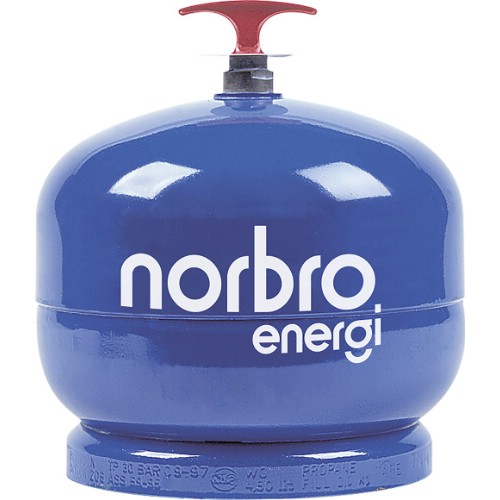

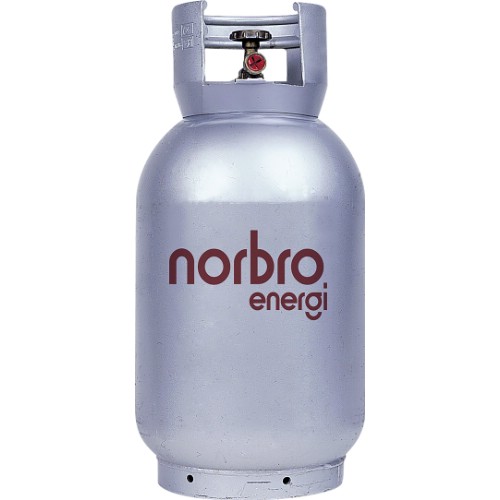

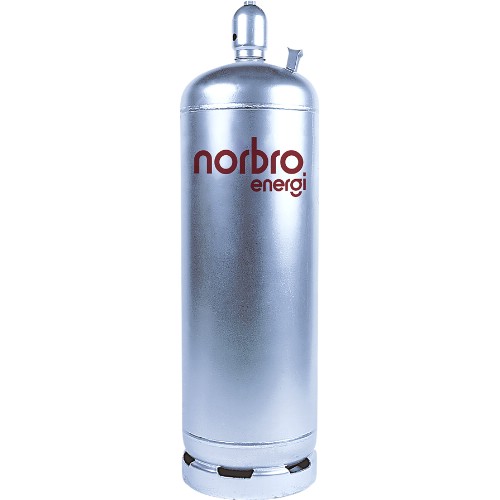

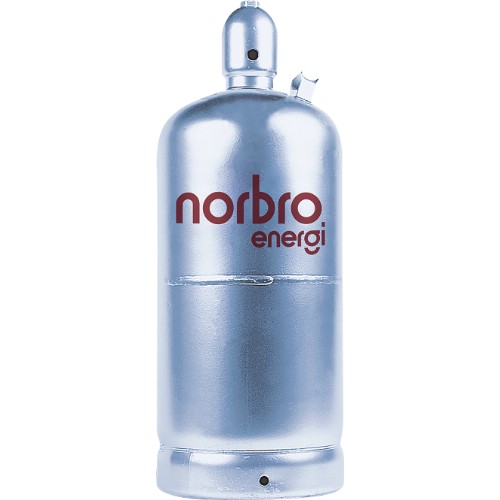

Made of steel. Inspected and approved by the relevant authorities.
Gas type: Propane.
Height: 60 cm.
Diameter: 300 mm .
Weight empty: 11.5 kg.
Weight filled: 22.5 kg.

250 A, gaskyld, 3,5 eller 5 m, EURO-koppling. Flexlite GX-pistolerna för MIG/MAG-svetsning är utformade för att öka både användarens komfort och svetsproduktivitet. De innovativa tillverkningsmetoderna, de högkvalitativa materialen och den noggranna kvalitetskontrollen säkerställer att du alltid kan lita på din Flexlite GX-svetspistol. Pistolhandtagets anatomiska utformning och utmärkta balans minskar belastningen på handleden och hjälper svetsaren att koncentrera sig på utmaningen att skapa den perfekta svetsen. Det har en positiv inverkan på både kvaliteten och produktiviteten. Om du beräknar den totala ägandekostnaden för en Flexlite GX-svetspistol för MIG/MAG-svetsning ser du att den utmärker sig genom slitdelarnas långa livslängd, den höga effektiviteten och den goda ergonomin. Du märker även att den tydligt förbättrar din övergripande svetsproduktivitet.

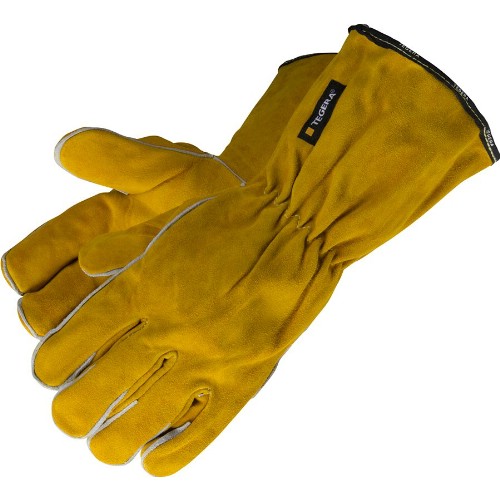

Flexible, unlined welding and heating glove in goat grain. Withstands contact heat up to 100°C. Reinforced index finger. Kevlar thread in the seams that can withstand 427°C short-term heat exposure and 204°C long-term heat exposure. Flameproof. Resistant to welding spatter and grinding spatter.

Approved/Certified according to:
CE category 3
EN 420:2003+A1:2009
EN 388:2016 3111X
EN 12477:2001+A1:2005 Type B
EN 407:2004 412X4X
EN 1149-2:1997

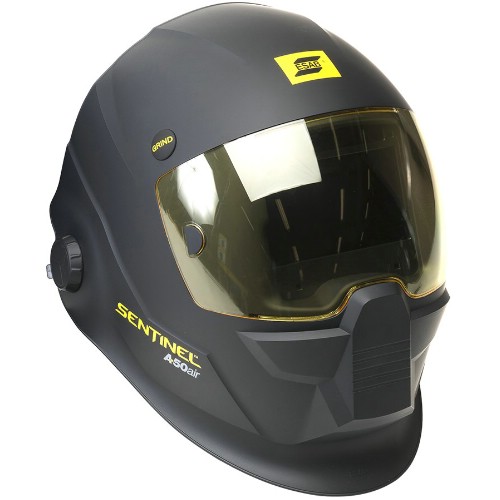

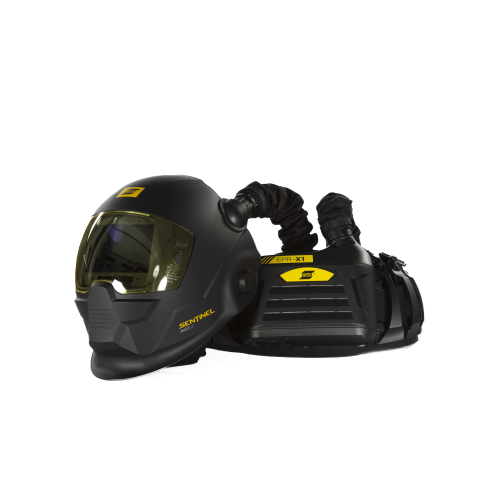

Sentinel A60 Air svetshjälm bygger på framstegen med standardhjälmen Sentinel A60 och tar din svetsning till nästa nivå. En stor panoramavy och perfekt 1/1/1/1 EN optisk klarhet ger en ännu bredare vy över smältbadet utan någon förvrängning. Den omarbetade automatiska avbländningen (auto-darkening filter, ADF) har en ny OpTCS™ ljusstyrningsteknik för brett spektrum från ESAB, vilket ger dig en förbättrad sikt med verklig färgåtergivning och minskad ögontrötthet för de mest krävande dagarna på jobbet. Nya justering av mörkhetsgraden i steg om 0,5 ger dig mer exakt kontroll över sikten. Skalet har kvar Sentinels signaturskalsdesign och har en ny luftdiffusorskärm. Ett helt justerbart Halo™ huvudbindsle och en extern sliplägesknapp fulländar den mest bekväma, högpresterande hjälmen som ESAB någonsin har producerat.

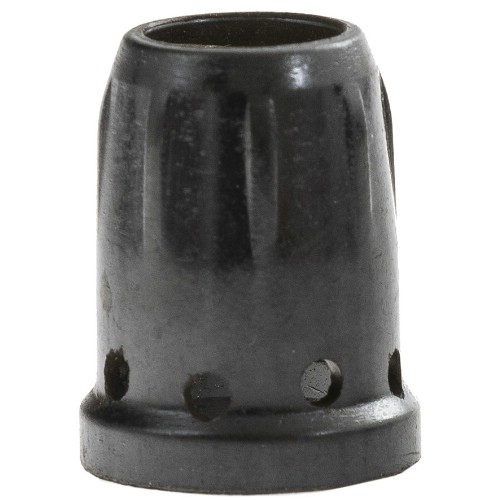

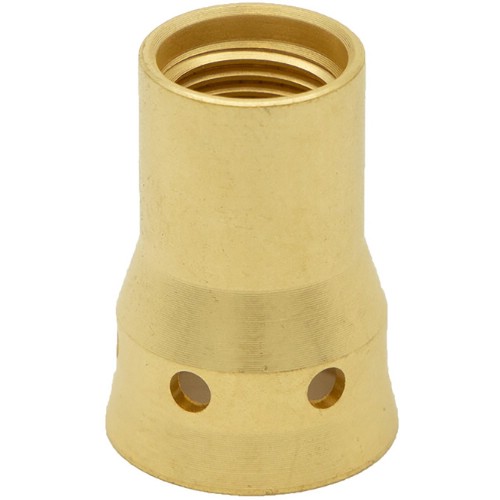

Gas diffuser KEMPPI M10, insulated.
Fits GX203G35, GX203G5, GX303W35, GX303W5, GX205G5, GX305W35, GX305W5, GX305WS6*, GX303G35, GX303G5, GX403W35, GX403W5, GX3 05G35, GX305G5, GX305GS6 *, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8*, GX403G35, GX403G5, GX503W35, GX503W5, GX405G35, GX405G5, GX505W35, GX505W5, GX305GMN35, GX305GMN5, GX208GM N35, GX208GMN5, GX308GMN35, GX308GMN5, GX408GMN35, GX408GMN5, GX428W35, GX428W5 , GX428W35N250, GX428W5N250, GX528W35, GX528W5, GX528W35N250, GX528W5N250, GX428WS8*.

MK 150 is a small and simple mounting clamp with a grip width of 50 mm. It is fully galvanized and can be used as a return conductor clamp for the smaller dimensions of welding cable. MP 200 (grip width 50 mm), MP 300 (grip width 55 mm), MP 400 (grip width 60 mm) are robust return conductor clamps with strong springs for good contact.
Max amperage is intended at 35% intermittency.

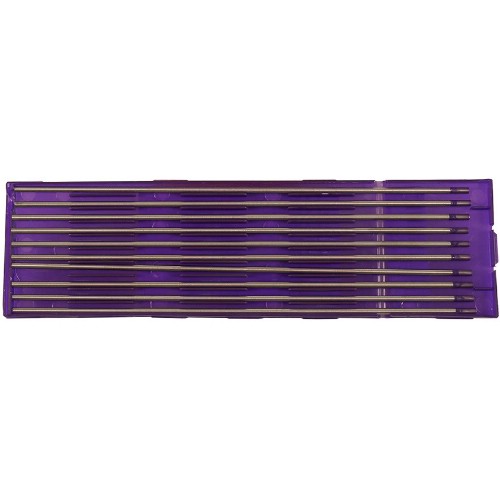

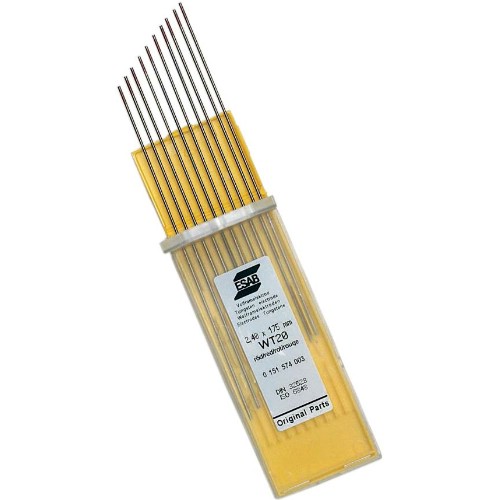

Tungsten electrodes with excellent welding and ignition properties and available in three different types.
- Gold Plus is an all-round electrode (AC/DC).
- Pure Tungsten (green) for welding with alternating current (AC).
- Cerium alloy (grey) is an all-round electrode (AC/DC).
Gold Plus is the perfect all-round electrode, which welds equally well with direct current (DC) as with alternating current (AC). The Gold Plus electrode has excellent ignition properties and welds with the best results both at high and low amperage. Gold Plus is recommended for welding in structural steel, stainless steel, high-alloy special steels, aluminium, magnesium, titanium, nickel and copper alloys.
The electrodes are 175 mm long and are supplied in a practical plastic box.

(HTML text not available)

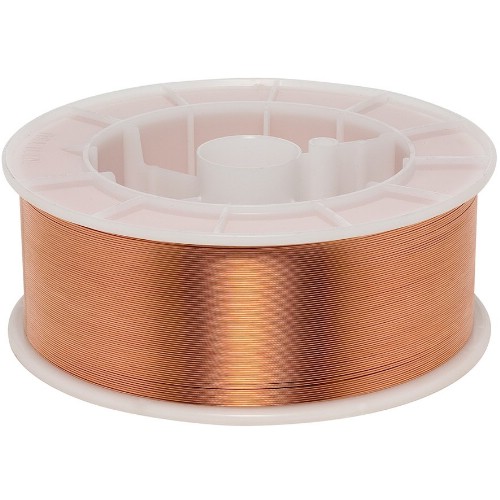

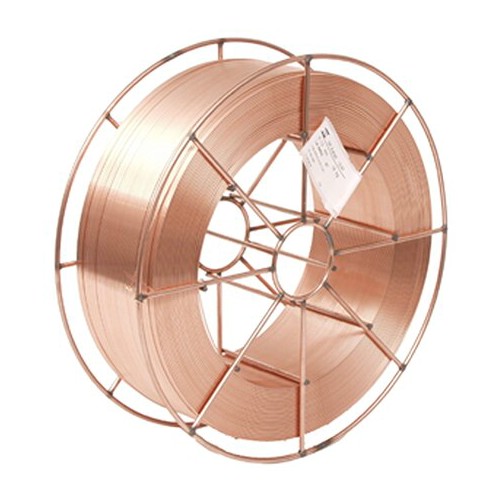

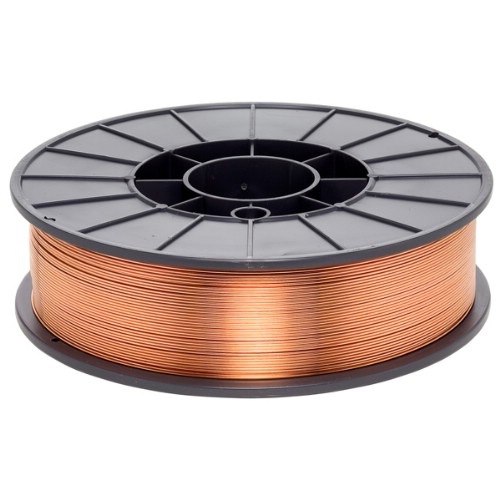

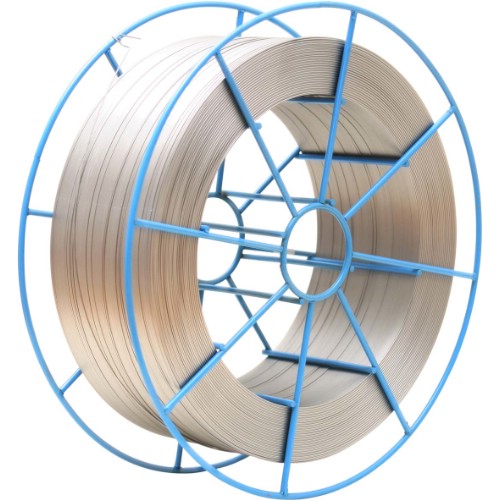

Pre-copper silicon-manganese alloy G4Si1/ER70S-6 wire electrode for gas metal arc welding of unalloyed and fine-grained steel types in general structures, automotive industry, pressure vessel manufacturing and ship production. The higher silicon and manganese content contributes to a more porous weld and better wetting against the base material, and increases the strength of the weld metal.
Shield gas:
Ar+20%CO2 (M21) or CO2 (C1)
Current type:
DC+
Example of corresponding additive material:
TIG: OK Tigrod 12.64
MMA: OK 48.00, 38.84
Tube wire: OK Tubrod 14.12, 14.13, 15.14
Electrode class:
SFA/AWS A5.18: ER70S-6
EN 440: G4Si1
Typical values on solid welds:
Composition of the wire %:
C: 0.1, Si: 1.0, Mn: 1.7
Mechanical values:
Strength (ReL): 525 MPa
Breaking strength (Rm): 595 MPa
Elongation (A5): 26%
Impact strength, KV:
Test temperature/Impact strength value: +20°C/130 J, -20°C/ 90 J, -30°C/70 J
Approvals:
ABS: 3SA, 3YSA, BV : SA3YM, CL, DB: 42.039.11, DNV: III YMS, DS: EN 440, GL: 3YS, LR: 3 3YS, RINA: SG56A3; SG56A2, RS: 3YMS, Sepros: UNA 485178, SFS: EN 440, SS: EN 440, UDT: DIN 8559, Ü: 42.039/1, VdTÜV

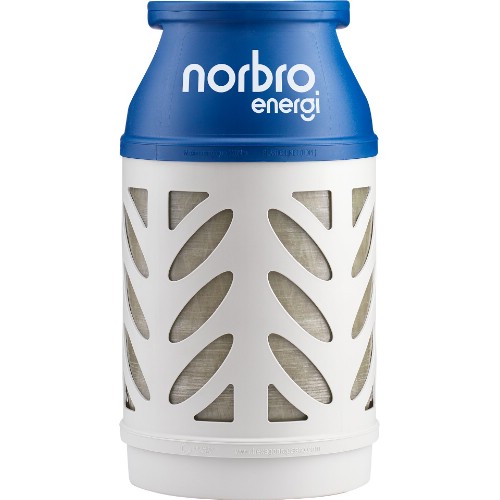

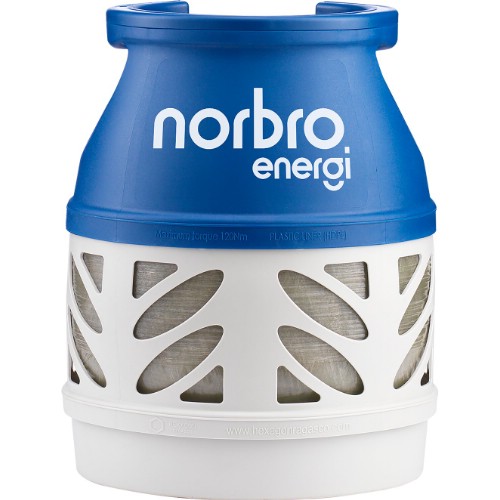

Made of composite material (glass fiber reinforced plastic). Advantages of the composite bottle: Visible gas level, lighter than the steel bottle, stronger than the aluminum bottle, does not rust, stackable. Recyclable material. The valve of the composite bottle is fitted with a fuse. In the event of a fire, the fuse opens and the gas is evacuated. Suitable for leisure and household.
Gas type: Propane.
Height: 57.5 cm.
Diameter: 301 mm.
Weight empty: 7.3 kg.
Weight filled: 17.3 kg.

Wear parts for TIG torches with a small torch head.

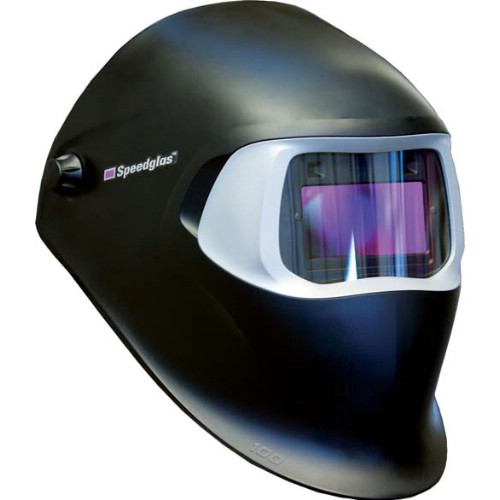

Speedglas 100V is an easy-to-use and comfortable welding visor with simpler functions. The automatic welding glass has five degrees of tightness in the dark mode, DIN 8 to 12, and has three sensitivity modes to ensure reliable detection of the welding arc. Speedglas 100 is perfect for welders who mainly weld with electrode, MIG/MAG and some types of TIG and who do not weld all day. Speedglas 100V is available in black standard design and in graphic printing with a number of different motifs. The graphics are made in a very durable, varnished lamination that is easy to wipe down and keep clean. The welding glass is powered by 2 CR2032 batteries.
Conforms to EN 379.

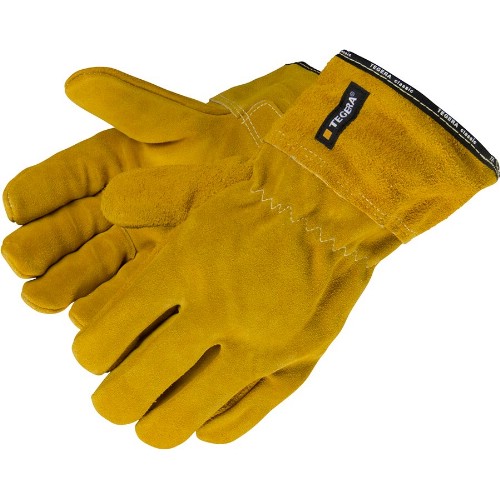

A fully lined heating glove in durable cowhide with heat-resistant Kevlar wire. Good fit with elastic seam over the wrist. 10 cm long collar. Suitable for welding.

Approved/Certified according to:
CE category 3
EN 420:2003+A1:2009
EN 388:2016 3143X
EN 12477:2001+A1:2005 Type A
EN 407:2004 41314X
EN 1149-2:1997

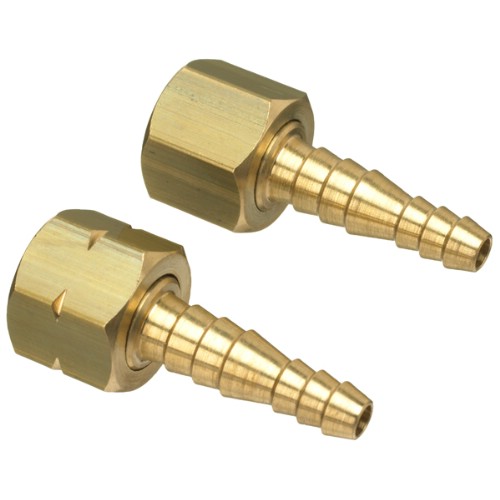

Hose sockets complete with nuts.

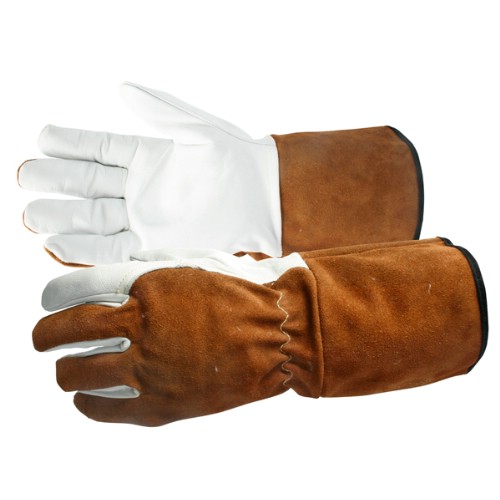

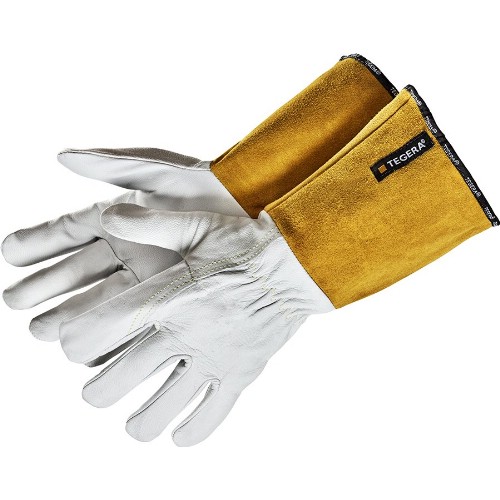

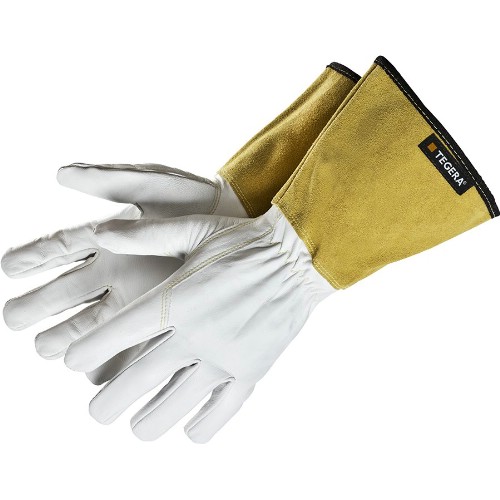

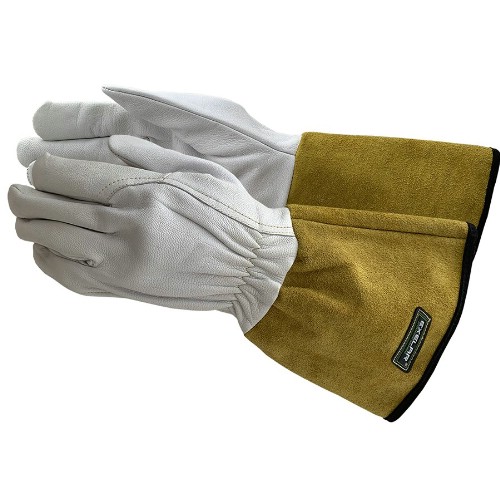

Argon welding glove of soft goatskin with top and collar (12 cm) of split leather. Unlined and sewn with Kevlar thread. Length 30-35 cm. Lanolin- and DMFu-free.

Approved/Certified according to:
EN ISO 21420:2020
EN 388:2016 2132X
EN 407:2020 41214X< BR>EN 12477:2001+A:2005: (Type B)

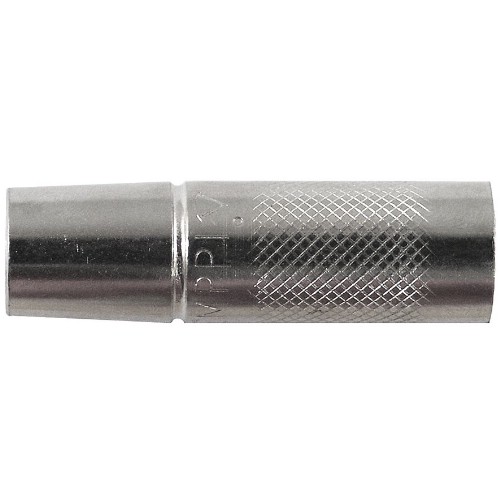

Gas hood KEMPPI MT.
Fits GX253G35, GX253G5, GX255G35, GX255G5.

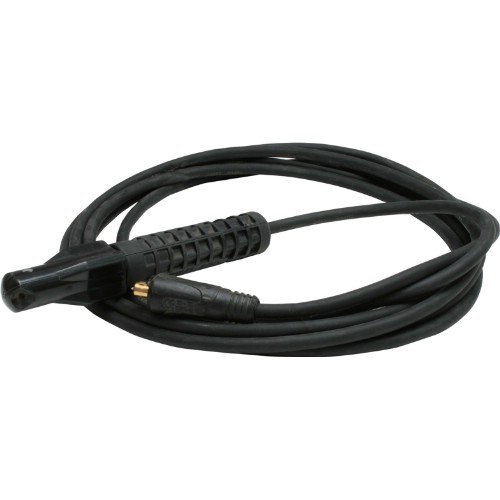

Complete with electrode holder and goods clamp.

Unlined welding and heating glove made of goat grain. Flexible with a good fit. Withstands contact heat up to 100°C. Reinforced index finger and reinforced seams. Thickness 0.7-0.8 mm. Elastic 180°.

Approved/Certified according to:
CE category 3
EN 420:2003+A1:2009
EN 388:2016 2111X
EN 12477:2001+A1:2005 Type B
EN 407:2004 412X4X
EN 1149-2:1997

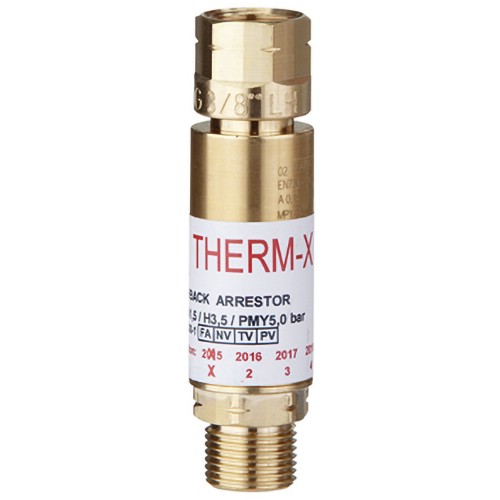

The ELGA THERM-X contains the most important safety features but is not resettable, which means that one should replace the backflow preventer after a full backflow.
Filter that prevents impurities from affecting the function of the non-return valve. Flame arrester made of sintered metal that stops and extinguishes backfires. Non-return valve that prevents backflow. Thermal fuse that shuts off the gas supply in the event of overheating. ELGA THERM-X has Swedish approval number SP 2010/78Q and is manufactured in accordance with EN-730.

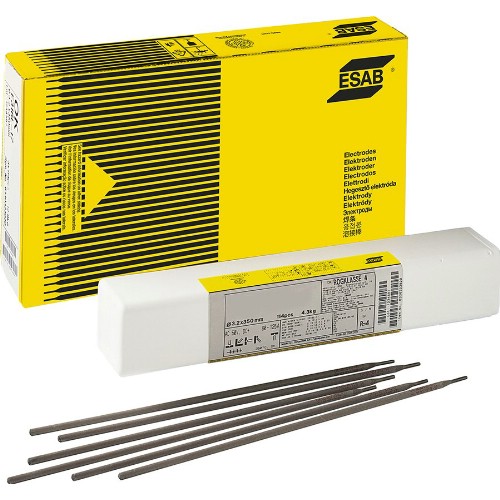

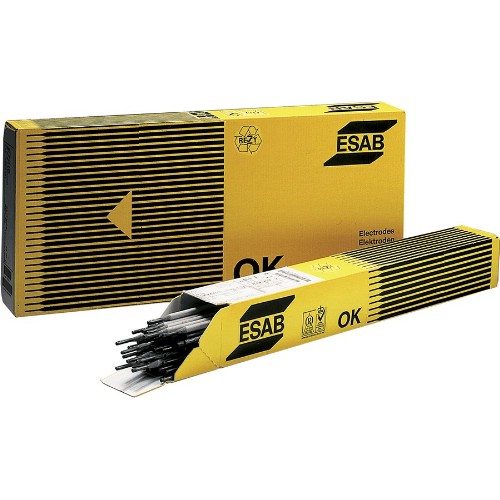

Extra low-carbon stainless steel electrode of type 18Cr 12Ni 2.8Mo intended for position welding mainly of thin-walled pipes. The electrode has a thin casing and can be welded according to the so-called ''drop welding method'' or vertical falling, which is faster. This requires an electrode with very good ignition and re-ignition properties, which makes OK 63.20 very suitable. The electrode is directly adapted for the stainless steels of types 316 and 316L, for example X3CrNiMo17-13-3 (SS2343), X2CrNiMo18-14-3 (SS2353) or corresponding steel according to other standards. The weld metal's low carbon content provides good resistance to intercrystalline corrosion but also to pitting and most types of corrosion in reducing and neutral solutions. OK 63.20 can also be used for welding stabilized steels if these are not to be operated at temperatures above 400°C. /B>
DC+, AC, open-circuit voltage (OCV) 50 V
Examples of corresponding additive materials:
TIG: OK Tigrod 16.32
MAG: OK Autrod 16.32
Tubing wire: OK Tubrod 14.21
Electrode class:
EN 1600: E 19 12 3 L R 1 1
SFA/AWS A5.4: E316L-16
Werkstoff Nr: 1.4430
CSA W48: E316L-16
Typical values ??of all-weld material:
Chemical composition %:
C: <0.03, Si : 0.50-1.00 Mn: 0.5-1.2, Cr: 17.5-19.0, Ni: 11.0-13.0, Mo: 2.5-3.0
Mechanical values:
Yield limit (Rp0 ,2): 480 MPa
Breaking strength (Rm): 590 MPa
Elongation (A5): 41%
Impact toughness, KV:
Test temperature/Impact toughness value: +20° C/56 J, -60°C/46 J
Ferrite number: FN 3-10
Approvals:
CWB: CSA W48, Seproz: UNA 272580, VdTÜV: 09716, CE: EN 13479

Speedglas SL, a welding visor that weighs only 360 grams. The welding glass is lighter than on other models with a thinner construction. With density 8-12 in the dark mode and four modes for the sensitivity of the sensors, Spedglas SL is suitable for most types of welding and environments, such as electrode, MIG/MAG, TIG and plasma welding. Particularly suitable for welding at low to medium amperage (0.1 to 250 amps). The visor does not need to be turned on and off as this is done automatically. The welding glass is powered by 2 CR2032 batteries.
Conforms to EN 379.

Compact and robust machine with outstanding welding performance. All electrode types can be used. PFC technology for optimal energy efficiency. High output current and intermittence. Large voltage reserve and automatic arc regulation provide excellent arc stability in all welding modes for a wide selection of electrode types, giving good welding results every time. Large and clear display makes it easy and simple to accurately set the current. The precise "lift" TIG ignition ensures high-quality TIG welding with direct current. Connect a remote control for adjustment of the welding parameters from a distance. Ideal on construction sites because you can connect it to the mains or a power plant even with extra long power cables.
Supplied with: Welding conductor with Myking electrode holder and return conductor length 3 meters.

Metal powder filled seamless tube wire without slag for unalloyed steels. Developed for use with M21 as shielding gas. Designed for manual and mechanized welding of keel joints in spray arc but also good in short arc. Filling mainly of metal powder. Welds with a stable arc and gives a good profile on the weld and negligible welding spatter. Can be welded in several layers without slag as only smaller silicon islands are formed. The exact roundness and diameter with the copper coated surface gives very good feeding characteristics and especially when using long wire conductors. Designed to meet impact strength value >47J at -40°C.
Current type:
DC+
Electrode class:
AWS: A5-18 E70C -G
EN ISO 17632-A: T 42 4 Z M M 1 H5
Typical chemical values ??in weld metal %:
C: 0.05, Si: 0.56, Mn : 1.56, P: 0.010, S: 0.013, Cu: 0.25.
Mechanical values:
Strength: 520 Mpa
Strength at break: 580 Mpa
Elongation : 29%
Impact toughness:
Test temperature: -40° C
Impact toughness value Charpy V (J):: 70
Approvals:
DNV, LR, ABS, BV, GL, DB.

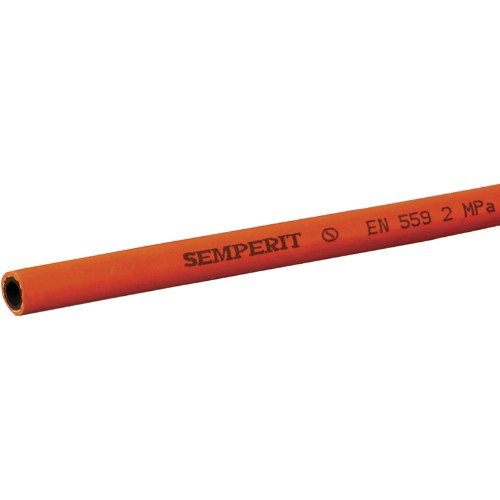

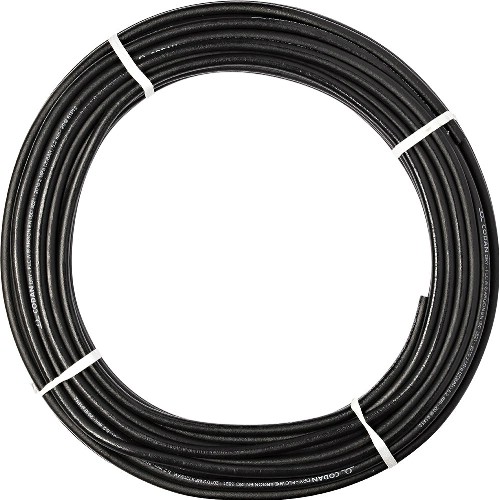

Flexible welding hose for argon. For use in industrial argon welding applications. Specially developed to prevent moisture from entering the hose from the outside. A very strong, non-porous weld is thus achieved.

Wear parts Pyrex for TIG torches.

(HTML text not available)

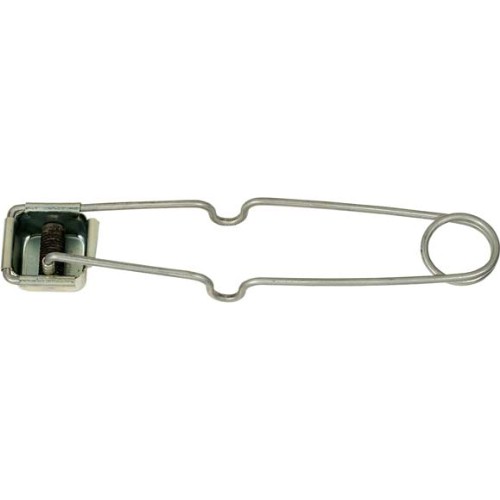

Gas lighter model Shurlite. Consists of a springy leg, fitted with replaceable pins.

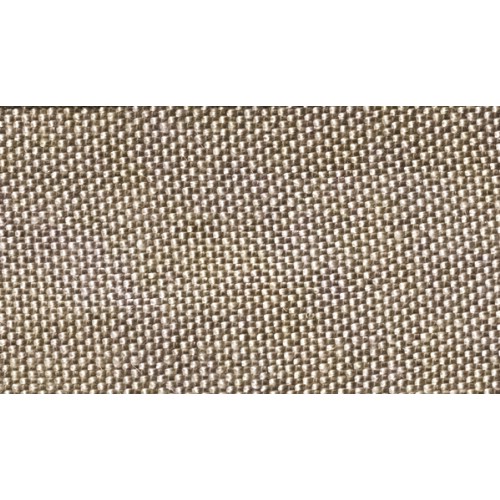

Welding felt made of fiberglass. Protection class Light-duty protects against minor welding spatter and sparks. Recommended for use at a minimum 15° slope. Color: Beige.
Temperature resistance: 550°C

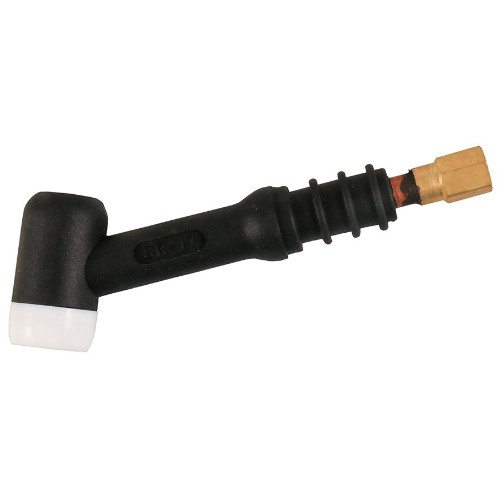

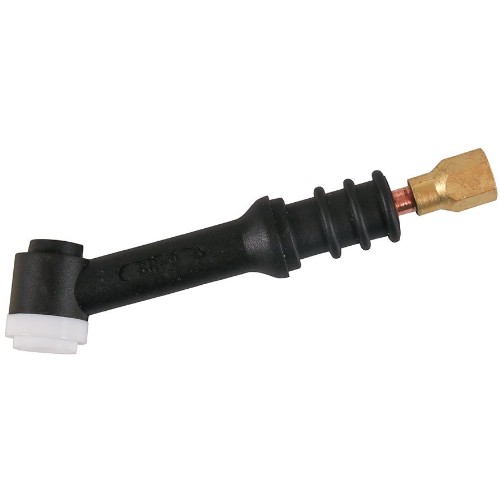

Consumable parts torch body for TIG torch with large torch head. Fits TTK, TTC.

Slitdelar till lilla Linde systemet, passar mellan olika fabrikat t.ex. Esab, Kemppi, Binzel.

Gas caps, clamping sleeves, electrode nozzles and gas lenses for TXH torches.
Tig pen for advancing additive.

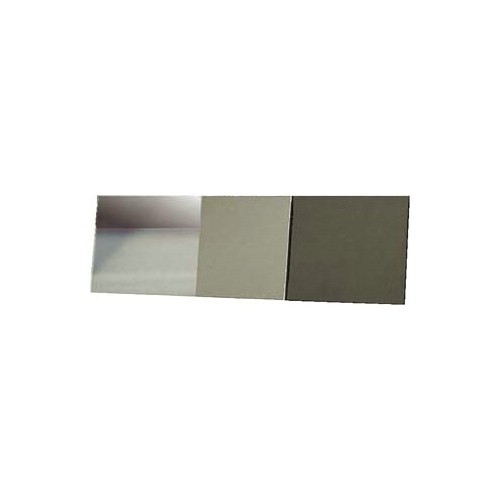

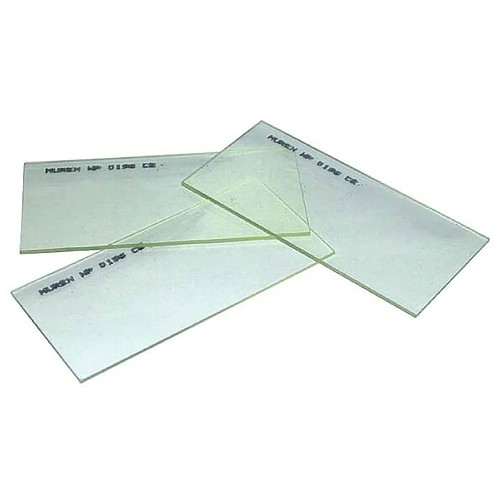

Welding glass that protects against UV and IR radiation and provides maximum thermal stability. Must be used together with ESAB protective glass. All welding glasses are individually marked with ESAB and degree of darkness in DIN.

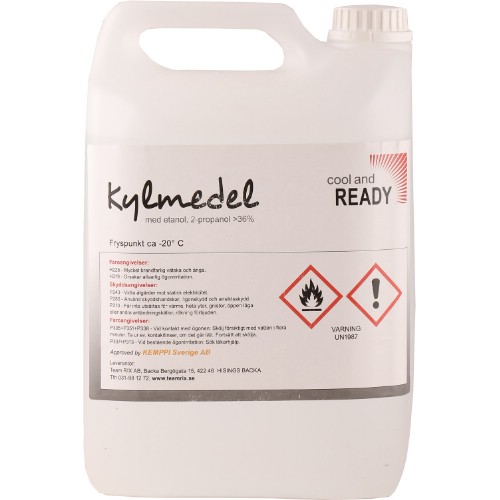

Coolant with ethanol Cool & Ready Coolant has an ethanol content of over 36% and therefore withstands a freezing point of -17°C. The coolant is developed and recommended by Kempii Sverige AB. It is pre-mixed to be used immediately.
Many advantages of Cool & Ready Coolant:
Ethanol-based >36%
Can withstand down to -17°C
Specially developed for Kempii welders
Pre-mixed and ready to use immediately

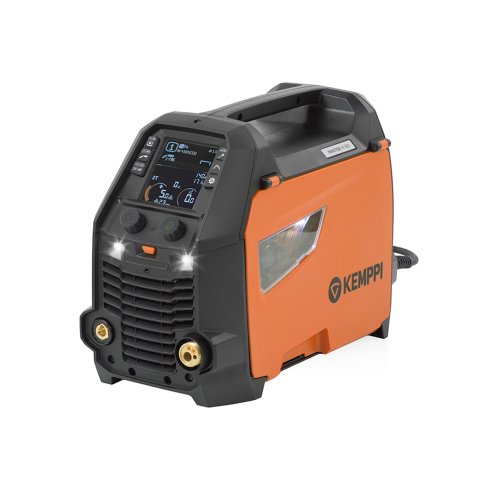

En portabel multi-processvetsmaskin som ger 200 A vid 40 % intermittens. Alternativ för manuell, synergisk och pulsMIG-svetsning samt MMA- och DC TIG-svetsning. Intelligent inställning av svetsparametrar med Weld Assist. Innehåller 20 fabriksinstallerade svetsprogram för 1-MIG och 17 fabriksinstallerade svetsprogram för pulsMIG. Svetsprogrammen inkluderar materialen Fe, Ss, Al, CuSi och CuAl. Kan användas med generator.

Maskinen levereras med gasslang och återledare. Svetspistol, vagn, matarhjulskit och ev. tillbehör säljes separat.

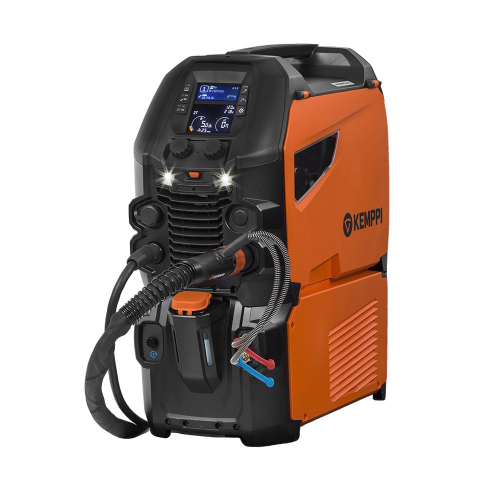

Master M 323 är en bärbar MIG/MAG-svetsmaskin med hög prestanda som ger 320 A vid 40 % intermittens. Det är en bärbar och lätt liten MIG/MAG-svetsmaskin som är redo för stora jobb överallt ute på fältet. Öka svetskvaliteten och spara tid med 28 inbyggda MIG/MAG-svetsprogram för Fe, Ss, AlMg5, AlSi5, CuSi3, CuAl8 och FC-CrNiMo som tillsatsmaterial. Dessutom innehåller den bärbara MIG/MAG-svetsmaskinen Master M 323 4 svetsprogram för specialsvetsprocessen "MAX Cool" som förenklar rotsträngssvetsning och spaltöverbryggning.

Maskinen levereras med gasslang och återledare. Svetspistol, vagn, matarhjulskit och ev. tillbehör säljes separat.

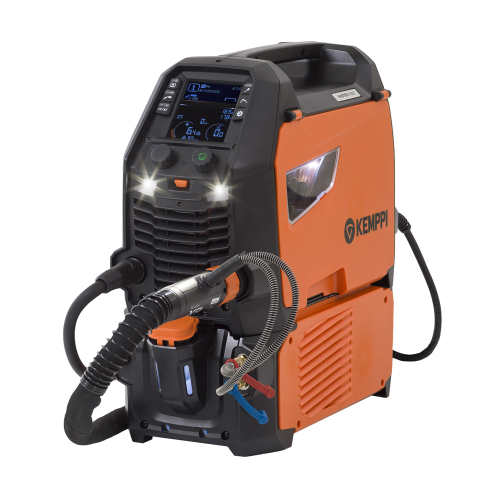

Master M-serien innehåller synergiska 353(Auto) och puls 355(Auto Pulse) MIG-modeller som förbättrar svetsprestandan vid industriella tillämpningar och säkerställer enastående svetskvalitet. Master M's digitala ljusbågskontroll, snabba inställningar och utmärkta effekt/vikt-förhållande sätter nya standarder för svetskvalitet, svetsproduktivitet och effektivitet i arbetet.. Du kan svetsa med gaskylda svetspistoler eller välja Master M's kylenhet som finns som tillval för ett integrerat vattenkylt paket som maximerar utnyttjandet av svetsströmmen på 350 A 40 % ED och möjliggör längre svetstider. Den inbyggda LED-arbetsbelysningen kan användas med eller utan nätanslutning och är en praktisk och användbar extra ljuskälla som förbättrar säkerheten och ökar produktiviteten i dåligt upplysta miljöer. Förbättra de nya nivåerna för svetsproduktivitet och kontroll genom att aktivera svetsprocesserna MAX-specialsvetsprocesser, som ger en extra ökning av svetsprestanda för utmanande svetsning av stål, rostfritt stål och aluminium.

Anslutningsspänning 3-fas 50/60 Hz: 380 - 460 V ±10 %
Säkring: 16 A
Uteffekt 40 % ED: 350 A (MMA 330 A)
Uteffekt 60 % ED: 280 A
Uteffekt 100 % ED: 220 A
Trådmatarverk: 4-hjuls singelmotor
Trådmatningshastighet: 0,5 - 25 m/min
Anslutningseffekt vid max. ström: 14 kVA
Rekommenderad elverkseffekt (min.): 20 kVA
Pistolanslutning: Euro
Trådbobinens vikt (max.): 20 kg
Trådbobinens diameter (max.): 300 mm
Tillsatsmaterial, Ss: 0.8 - 1.2 mm
Tillsatsmaterial, Al: 0.8 - 1.2 mm
Tillsatsmaterial, Fe: 0.8 - 1.2 mm
Tillsatsmaterial, MC/FC: 0.8 - 1.2 mm
Diameter på matarhjul: 32 mm
Svetsströms- och spänningsområde
MIG: 15 A/10 V–350 A/45 V
TIG: 15 A/1 V–350 A/45 V
MMA: 15 A/10 V–330 A/45 V
Omgivningstemperatur: -20 till +40 °C
Yttermått L × B × H: 602 x 298 x 447 mm
Vikt (inga tillbehör): 27 kg
Skyddsklass: IP23S
Standarder: IEC 60974-1, -10
EMC-klass: A
Förvaringstemperaturområde: -40 till +60 °C
Skyddsgastryck (max): 0,5 MPa

Wear parts gas lens for TIG torch with large torch head.

"Elga" Welding insert for D 75 Ergo and D 75 VVS

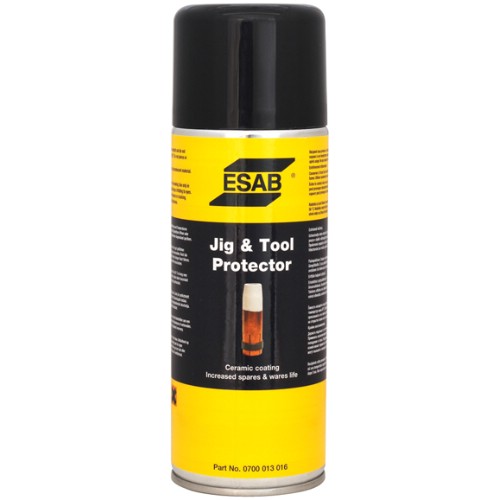

Spray that provides a silicone-free ceramic coating that prevents welding spatter from sticking to welding equipment. The coating forms a dry film that prevents the welding spray from sticking.

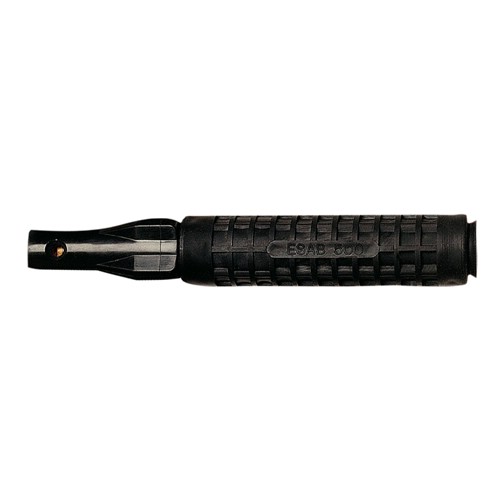

Electrode holder ESAB is of the screw type. Good current transfer between electrode and holder. Two position holes for 45° and 90° for welding in different positions. Low heat conduction increases the service life of the electrode holder. The welding cable is connected and fixed with two screws. Fully insulated and CE-approved.
Max amperage refers to 35% intermittence.

Contact nozzle 1.0 C1 standard M10.
Fits GX203G35, GX203G5, GX303W35, GX205G35, GX205G5, GX305W35, GX305W5, GX305WS6* GX303G35, GX303G5, GX403W35, GX403W5, GX 305G35, GX305G5, GX305GS6*, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8* GX305GMN35, GX305GMN5 GX208GMN35, GX308GMN35, GX308GMN5 GX428W35, GX428W5, GX428W35N250 428W5N250

Overalloyed stainless electrode for welding stainless to other types of steel. However, OK 92.26 should be used for welding stainless against heat-resistant steels, for example SS 2116, SS 2218 (10CrMo9-10) at high operating temperatures. The electrode is suitable for bottom strings in the transition between the unalloyed and stainless layers of compound plates. OK 67.70 has excellent welding properties on both direct and alternating current. It can be used in all positions except vertically downwards and in all existing joint types. For horizontal welding in thicker materials, the fast-welding high-yield electrode OK 67.71 can be a good alternative to OK 67.70.
Return:
120%
Type of current:
DC+, AC, open circuit voltage (OCV) 55 V
Example of corresponding additive material:
TIG: OK Tigrod 16.54
MAG: OK Autrod 16.54
Tube wire: OK Tubrod 14.33 , 15.32
Electrode class:
EN 1600: E 23 12 2 L R 3 2
SFA/AWS A5.4: E309MoL-17
Werkstoff Nr: 1.4459
CSA W48: E309MoL-17
Typical values ??of all-weld material:
Chemical composition %:
C: 0.03C, Si: 0.8, Mn: 0.8, Cr: 23.0, Ni: 13.0, Mo: 2.7
Mechanical values:
Strength (Rp0.2): 510 MPa
Breaking strength (Rm): 610 MPa
Elongation (A5): 32%
Impact toughness, KV:
Test temperature/Impact toughness value: +20°C/50 J
Ferrite number : FN 12-22
Approvals:
ABS: SS to C&C/Mn steels, CWB: CSA W48, DB: 30.039.05, DNV: 309 Mo, LR: SS /CMn, RINA: E 309Mo, Sepros: UNA 409820, VdTÜV: 02424, CL: EN 1600, BV: UP, CE: EN 13479

All-round seamless rutile tube wire for industry and shipyards with requirements for impact strength down to -20°. For welding with mixed gas Ar/CO2(M21). The wire is easily welded and has a very stable arc with minimal spatter. Welds excellently in all positions and is very productive in vertical climbing. It is good for welding against ceramic backing. Good penetration provides good safety against welding failures, especially in the falling position. It has excellent properties against pores on primed material. A clean copper-coated surface causes little wear in wire conductors and contact tubes. Smooth and safe wire feeding.
Current type:
DC+
Electrode class:
AWS: A5-20 E71T1-M
EN ISO 17632 -A: T 42 2 Z P M 1 H5
Typical chemical values ??in weld metal %:
C: 0.05, Si: 0.41, Mn: 1.36, P: 0.010 , S: 0.008, Cu: 0.26.
Mechanical values:
Strength: 530 Mpa
Strength at break: 590 Mpa
Elongation: 28%
Impact resistance:
Test temperature: -20° C
Impact resistance value Charpy V (J):: 95
Approvals:
DNV, LR, ABS, GL , CWB, BV.

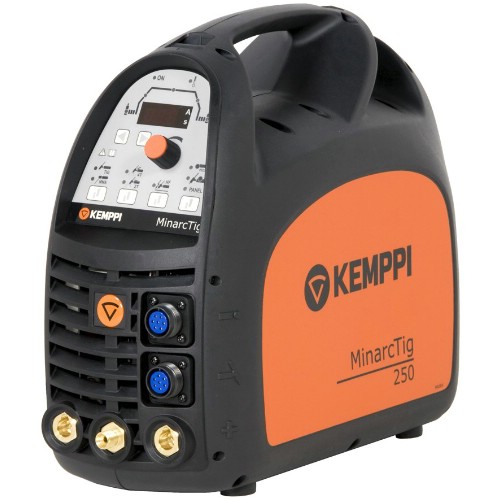

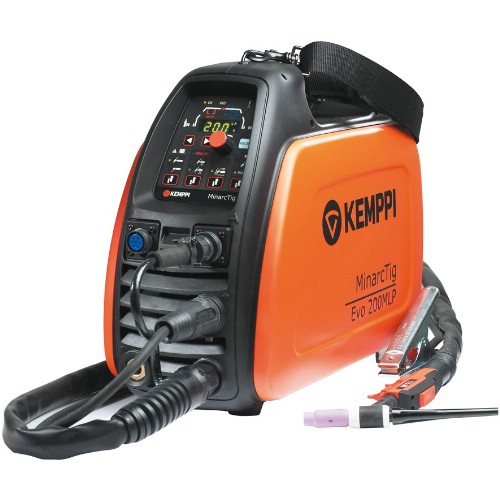

MinarcTig Evo is the perfect DC TIG welding solution for light industrial manufacturing, installation, repair and maintenance. Lightweight and compact size. Precise and refined HF ignition as well as the required regulation, power and work capacity, many different professional welding jobs can be reliably completed.
The powerful PFC power source combines useful performance advantages, such as energy efficiency and the ability to work reliably with extra long power cables of more than 100 meters. Connects to 220V 16A slow fuse or power plant. If you use a patch cord, we recommend using a 3 x 2.5 mm² patch cord. The output of an electrical plant must be at least 5.6 kVA. Recommended power is 8.0 kVA if the machine is to be able to be used with maximum power.
Large LED display and a variety of functions, e.g. timer for gas pre-flow and gas after-flow, timer for slope flow and remote control. MinarcTig Evo is a dual process machine that also provides MMA welding with different DC electrode types. Remote controls and equipment for MMA welding are ordered separately. The MLP models have additional functions including Minolog regulation and semi-automatic arc pulse functions. Delivery contents: 3 m mains cable with plug, 4 m protective gas hose and return conductor.

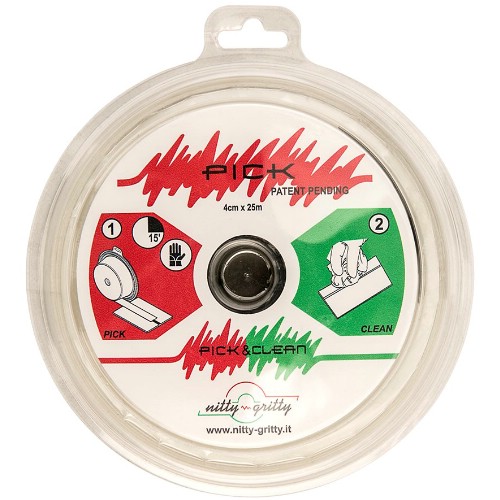

Bettape is used for pickling stainless and acid-resistant steels. The area of ??use is mainly where beet paste is not suitable or cannot be used due to lack of space. When using bettape and associated neutralization wipes (Pick & Clean Neutralization Wipe), you avoid all the handling of contaminated waste water that conventional picking entails.
Application: Tear off a suitable piece of bettape at the perforation and apply to the weld joint. Let the beta tape work for about 10-15 minutes. Use the Pick & Clean Neutralization Wipe to neutralize and collect the remains of the used beta tape. Pick & Clean Neutralization Wipe is thrown in the normal waste along with the used beta tape. Note! Use protective gloves when handling bait.

Made of steel. Inspected and approved by relevant authorities.
Gas type: Propane.
Height: 83 cm.
Diameter: 320 mm .
Weight empty: 19 kg.
Weight filled: 38 kg.

Gasoline bottle in composite material, holding 5 kg of gasoline. Equipped with a safety valve and is suitable as, among other things, a barbecue bottle.
Gas type: Propane.
Height: 38.5 cm.
Diameter: 305 mm.
Weight empty: 3.8 kg.
Weight filled: 8.8 kg.

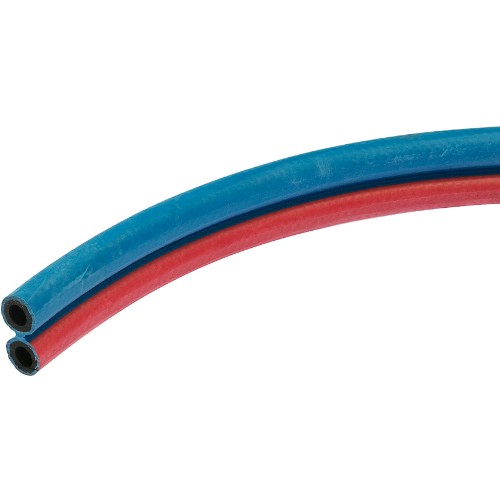

Inner tube of black smooth SBR/NR. Reinforcement of spiralized textile cord. Outer tube blue and red smooth NR/EPDM. The hose meets the requirements according to EN 559 and ISO 3821.
Area of ??use: Twin hose for welding gas.
Temperature range: -30°C - +70°C.
*The bobbin.

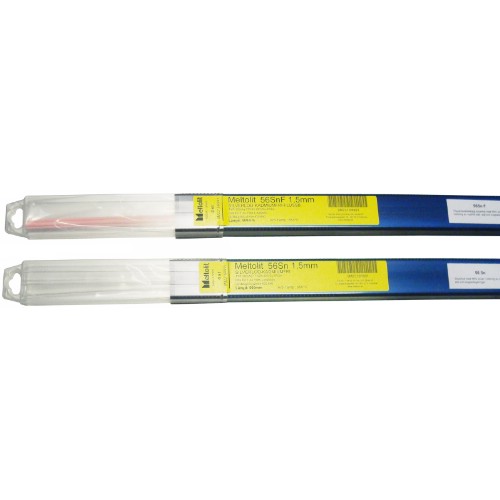

Cadmium-free silver solder for most common metals except aluminum and its alloys. The solder has very high capillary, wetting and flow properties due to the high tin (2-5%) and silver content (55-56%). Good color match to stainless steel. Good joint fit is required. Used in the food industry and for fine mechanics, heat exchangers and sanitary installations etc.
Working temperature: 650°C.
Melting range: 620-650°C.

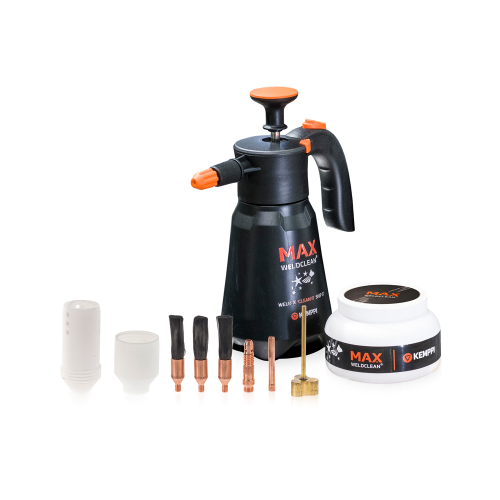

Med MAX WeldClean kan du färdigställa svetsar av hög kvalitet utan att behöva använda någon separat svetsrengöringsutrustning. Spara tid och pengar genom att snabbt aktivera rengöringsläget på Kemppi Minarc T 223 för en kraftfull elektrolytisk svetsrengöringsprocess direkt efter att en svets har utförts. Efterbehandling av svetsar har aldrig gått så snabbt.

Magnifying lens: Fits 105 x 50 and 110 x 60 mm.
The welding glasses comply with EN 169. CE marked.

Welding helmet prepared for fresh air unit Powered Air Purifying Respirator (PAPR). Automatic blinding cassette with viewing area 100x60 mm, classification 1/1/1/2, DIN 5-13. Adjustable reaction time (from dark to light) 0.1- 1.0 sec. Revolutionary helmet shell design made of highly impact and impact resistant nylon. High comfort and good visibility. Halo head harness, ergonomic 5-point head harness that can be adjusted in an infinite number of ways for optimal comfort and balance. When grinding, a grinding mode (DIN 4) can be activated with a button on the outside of the helmet shell. Simple control panel with colored touch buttons for settings. Powered by solar cell and 2 replaceable batteries (CR2450 lithium). Warns of low battery voltage. Used in welding processes GMAW (MIG/MAG), GTAW (TIG), PAW (plasma arc welding), SMAW / MMA (Stick), plasma cutting and grinding.
Supplied with welding cartridge, air duct and face seal. Fresh air unit not included.
Weight: 830 g.
Complies with standards DIN plus, CE, EN175, EN 379, EN166, ANSI Z87.1, CSA Z94. 3, AS/NZS 1338.1, EN 12941 Class TH3 P R SL.

Magnesium alloyed aluminum wire for TIG welding of salt water resistant Al-Mg alloys containing up to 5% Mg. The welding wire is the most used type and intended for welding alloys corresponding to, for example, ENAW-5083 (SS 4140) where high strength of the weld joint is desired. Base material in the 5XXX series which together with OK Tigrod 5356 gives a weld metal with more than 3% Mg has good resistance to cracks caused by stress corrosion even where the operating temperature exceeds 65ºC. The alloy cannot be heat treated.
Example of corresponding additive material:
MIG: OK Autrod 18.15
Electrode class:
SFA/AWS A5.10: R5356
EN ISO 18273: S Al 5356 (AlMg5Cr(A))
Typical values ??of all-weld material:
Chemical composition %:
Si : <0.25, Mn: 0.15, Mg: 5.0, Fe: <0.4, Al: Residual
Mechanical values:
Strength (Rp0.2) : 120 MPa
Breaking strength (Rm): 265 MPa
Elongation (A5): 26%
Approvals:
CWB: AWS A5.10 (Item number ending with A ), DB: 61.039.02, VdTÜV: 04665, Ü: 61.039, CE: EN 13479

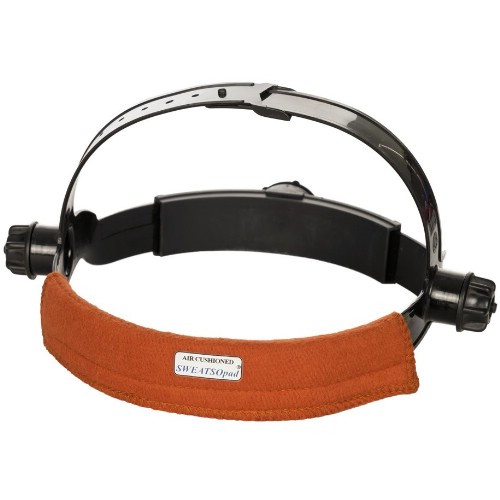

Flame retardant sweatband for welding helmet. Made of absorbent and shock-absorbing cotton. Velcro fastening is designed to fit the most common welding helmets. The package contains 2 pcs.
Material: 100% cotton.
Approved according to EN ISO 11611: 2003, TÜV AK60013119

Renegade ES är en professionell 1-fas, MMA och Live TIG-svetsmaskin med det mest motståndskraftiga IP23-höljet utformat för användning i krävande miljöer. Renegade ES är utrustad med en högkvalitativ bärrem med flera lyftpunkter och är redo att flytta med dig när bärbarhet krävs. Dessutom ger en inbyggd aktiv PFC-krets en oavbruten strömförsörjning, även med långa förlängningskablar (upp till 100 m). Renegade ES har utformats för att svetsa med alla typer av elektroder i överlägsen kvalitet, inklusive 6010 cellulosa. Användaren har direkt tillgång till parametrar och minnesknappar, vilket gör maskinen mycket lätt att arbeta med.

Rogue ET är en kraftfull och lättmanövrerad TIG-maskin med högfrekvensstart. Den har utformats med ESABs DNA-kod som ger utomordentlig robusthet i ett mycket kompakt hölje. Med lätt vikt, ergonomiskt handtag, axelrem och långa förlängningskablar är Rogue ET den perfekta lösningen för fälttillämpningar. Alla maskinvarianter är lämpliga för användning med generatorer (7kW). Rogue ET har exceptionella bågegenskaper, både i TIG-och MMA-läge. Den har flera avancerade parametrar som går att justera i TIG: gasförströmning, startström, strömstegringsstid, strömminskningstid, slutström och gasefterströmning. Samtliga fungerar med 2-eller 4-taktslägepulsfunktion med fr. Dessutom har Rogue ET 200iP en ekvens från 0,2Hz upp till 500Hz för bättre kontroll av värmetillförsel. I MMA kan användaren justera Hot Start eller Arc Force för att matcha sina bästa svetspreferenser eller sin tillämpning. Allt detta justeras snabbt genom ett enkelt och intuitivt användargränssnitt.

Developed to be used for Duplex and higher alloyed stainless alloys but can also be used for acid resistant alloys, then with a shorter pickling time.
Working temperature: +5°C to +40°C.

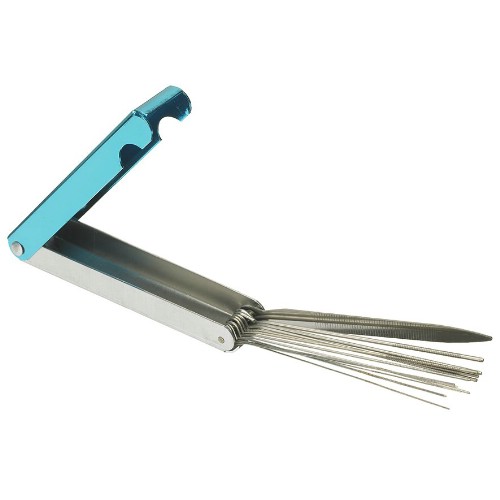

Cleaning needle set with 12 long, 80 mm. Aluminum case.

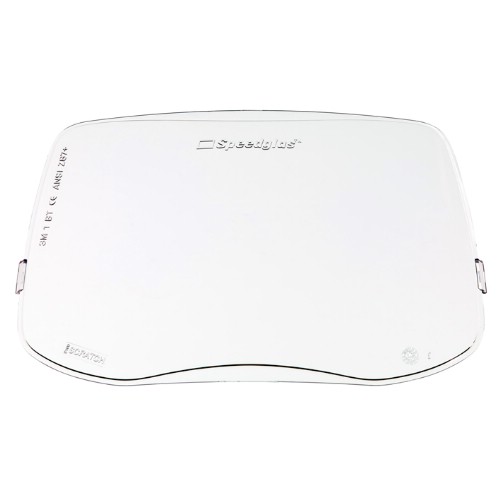

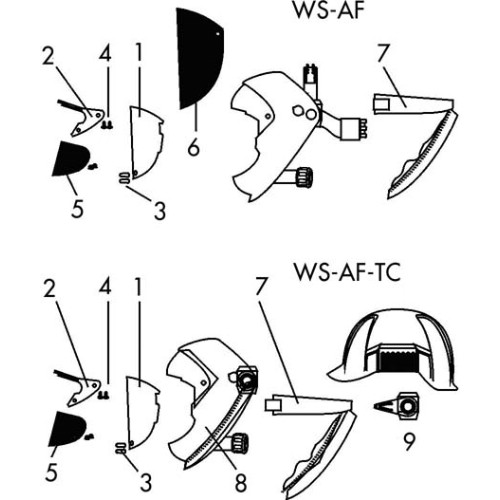

The spare parts below are common to all Speedglas models.

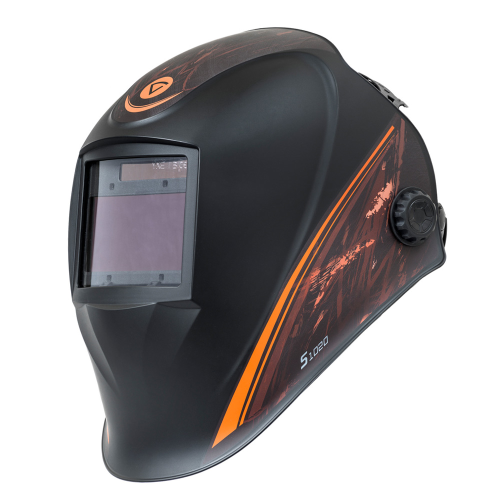

Welding helmet with arched automatic dimming welding glasses. The helmet is specially designed for advanced TIG welding and sets a new standard for sharpness on welding glasses. Also suitable for MMA, MIG/MAG welding and plasma cutting.
With Curved Glass technology, the welding glass follows the curvature of the head and is more in line with your peripheral vision. The curved glass enables a helmet with a narrower profile and wider field of vision. Visible surface of 150x76 mm. The combination of the curved welding glass and a narrower helmet reduces reflections and other distracting glare inside the helmet.
The design of the helmet means that the center of gravity is close to the center of the head, which provides better weight distribution. Innovative design for the ventilation of exhaled air to reduce heat and moisture, providing high comfort.
Welding glass with advanced electronics with four arc sensors, the welding glass switches reliably even at very low TIG settings (1 amp), which meets TIG+ standard according to ISO 16321. Variable density 8-12 and light density 2.5. Turnover time from light to dark in 0.1 ms. Natural Color technology, colors become clearer and more realistic in both light and dark mode. Also provides a more realistic field of view for better control over the welding arc. Easy-to-use control panel, where you manage the functions easily; Bluetooth ON, Density Lock, Delay, Density 8-12 (+/-) and Sensitivity (+/-). The most used controls (density and sensitivity) are located where they are easiest to access, in the lower left and right corners. Powered by 1 pc 3 V Lithium batteries (CR2450).
The welding glass is also equipped with Bluetooth function, easily pairs with smartphone. With the 3M Connected Equipment app there is access to additional functions;
Program up to ten memory settings (dark density, sensitivity, delay, etc.).
Easy to keep a log in the app of the maintenance of your welding helmet.
Statistical information directly: when your welding glass was first activated, how long it has been in operation, hours in dark mode, hours in light mode and number of operating cycles (on/off).
Access the user manual and accessory lists.
Weight : 535 g.
Complies with EN 379:2003+AI:2009, EN 166:F, EN 175:F, TIG+ standard according to ISO 16321.

Combines efficiency with environmental and health protection. Very effective protection against welding spatter that wants to stick. High-Tech welding spray is absolutely non-flammable, no harmful gases are formed during combustion and is harmless to the skin. Uses clean air as fuel, non-toxic and does not cause indirect air pollution or contribute to the greenhouse effect. Completely silicone-free and water-soluble.

(HTML text not available)

Thread M6 x 27 CuCrZr / M8 x 37 CuCrZr.

Extra low-carbon stainless steel wire electrode for gas metal arc welding of stainless steels containing approx. 18 Cr, 12 Ni, 3 Mo. Recommended for eg AISI 316, 316L. and 1.4436 (SS2343), 1.4435 (SS2353) or equivalent stainless steels according to other standards. The increased content of silicon leads to better welding properties. For material thicknesses below 3 mm, short arc welding is easier to handle than spray arc welding. Bottom strands in chamfered joints are also most easily performed with short arc welding, while the remaining strands, at least in the case of horizontal welding, can be performed faster with spray arc welding )
Shield gas:
Ar+1-3%O2 (M13)
Current type:
DC+
Example of corresponding additive material:
TIG: OK Tigrod 16.32
MMA: OK 63.20, 63.30, 63.34, 63.35, 63.41
Tube wire: OK Tubrod 14.21, 14.31, 15.31
SAW: OK Flux 10.92, 10.93 / OK Autrod 16.30
Electrode class:
EN 12072: G 19 12 3 L Si
SFA/AWS A5.9: ER316Lsi
W.nr: 1.4430
Typical values ??of all-weld material:
Chemical composition %:< BR>C: 0.02, Si: 0.8, Mn: 1.8, Cr: 18.5, Ni: 12.0, Mo: 2.7
Mechanical values:
Tensile strength (Rp0.2): 440 MPa
Break strength (Rm): 620 MPa
Elongation (A5): 37%
Impact strength, KV:
Test temperature /Impact resistance value: +20°C/ 120 J, -60°C/ 95 J, -196(C/55 J
Ferrite number: FN 5-10
Approvals:
DB: 43.039.05, DnV: 316L MS (-120°C), UDT: DIN 8556, VdTÜV: 04268, Ü: 43.039/1, CE: EN 13479, CWB: AWS A5.9 (item no ending with A)

Shielding gas ATAL for MAG welding in unalloyed, low-alloyed and stainless steels.
80% Ar 20% CO2

Contact nozzle KEMPPI 1.0 C1 standard M6.
Fits GX253G35, GX253G5, GX255G35, GX255G5.

Slitdelar till Hypertherm PMX 30/45 handhållna.

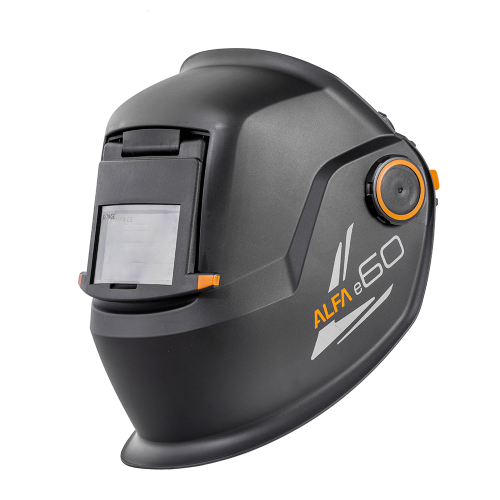

Svetshjälmen Alfa e60P med passivt svetsglas erbjuder det mest kompakta och lätta ansiktsskyddet för enklare svetsarbeten. Modellen har även väl tilltagna skalmått, uppfällbart svetsglas med inställning för tittläge (Gap View) och huvudbandet Com Flex. Vikt 470g Svetshjälmen Alfa e60A med automatiskt nedbländande svetsglas SA 35 erbjuder det mest kompakta och lätta ansiktsskyddet för enklare svetsarbeten. Modellen har även väl tilltagna skalmått, uppfällbart svetsglas med inställning för tittläge (Gap View) och huvudbandet Com Flex. Vikt 490g

Gas container. Equipped with self-closing valve with built-in safety.

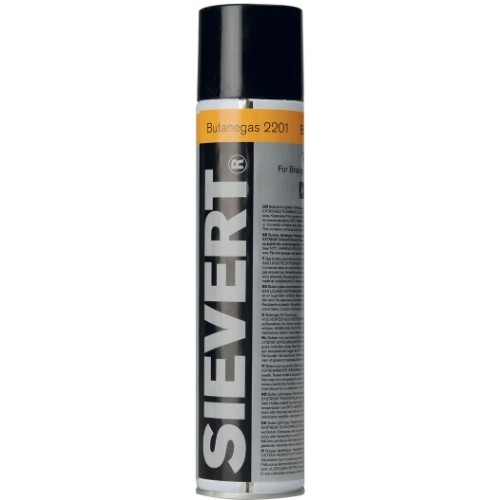

Butane gas 2201: Lighter gas for Butajet.
Powergas 2203, 2204: 1925°C (35% propane, 65% butane).
Ultra gas 2202, 2205: 2100°C (propane, propylene, butane and acetone).
Ultra map gas 2206: 2400°C (propylene, isobutane). Disposable aluminum container.
Propane gas 2208: 1925°C Disposable aluminum container with pure propane.
Folder gas 2221: High pressure container with pure 100% Propylene gas.
Extremely flammable.

A new generation of heli-insulated covers made of neoprene rubber. Bayonet-type quick coupling that guarantees good current transfer and secure locking. Good insulation and withstands harsh treatment. The cable is mounted with copper sheeting and a strong screw for safe current transfer. CE approved.

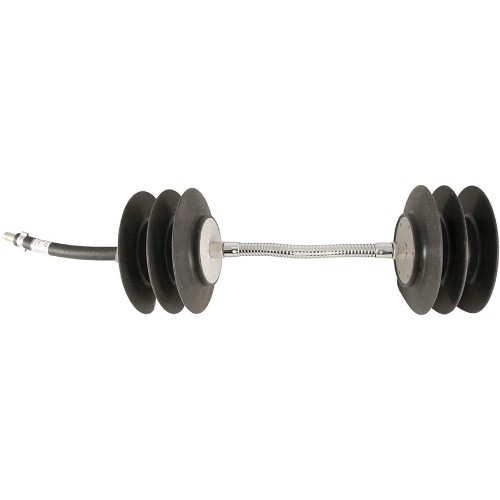

SC Profi is a patented shielding gas tool with a 3-lip sealing system with gas distribution disc in sintered metal. For pipes with inner diameter from 13 to 215 mm. The tool consists of a gas hose with female connection, a 3-lip sealing disc with a large gas distribution disc in sintered metal, a flexible pipe connection and finally, a 3-lip sealing disc with gas outlet plate. The design means that the shielding gas is atomized through the sinter plate, filling the space between the sealing discs and forcing all the oxygen out of the pipe through the output disc. The flushing time is only 1.5 minutes, after which you weld with guaranteed quality (< 50 ppm O2).
- Low flushing time, only 1.5 min at a gas flow of 10% of the inner diameter of the pipe.
- The shielding gas distributor ensures effective shielding gas coverage
- Three double sealing discs in UV-resistant silicone rubber, heat-resistant to +340ºC
- Suitable for TIG, MIG/MAG and Plasma welding
- Can be pulled through pipe bends, quick and easy to assemble

Fully lined flexible glove in cowhide of the highest quality. Sewn with Kevlar thread. All-round glove for work where heat-resistant gloves are needed, e.g. welding.

Approved/Certified according to:
CE category 2
EN 420:2003+A1:2009
EN 388:2016 3143X
EN 407 :2004 413X4X

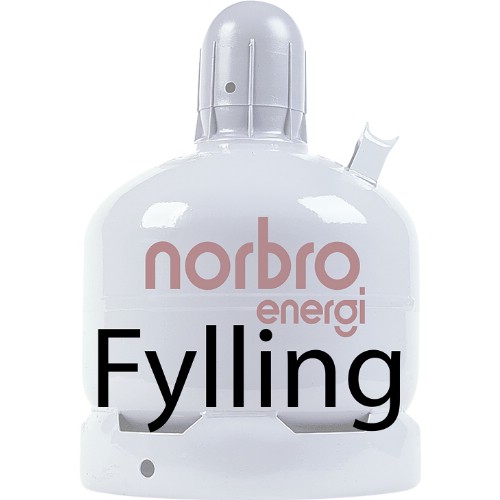

Lightweight gas bottle intended for use mainly in caravans and for household use.
Gas type: Propane
Height: 61.5 cm
Diameter : 300 mm
Weight empty: 8 kg
Weight filled: 19 kg

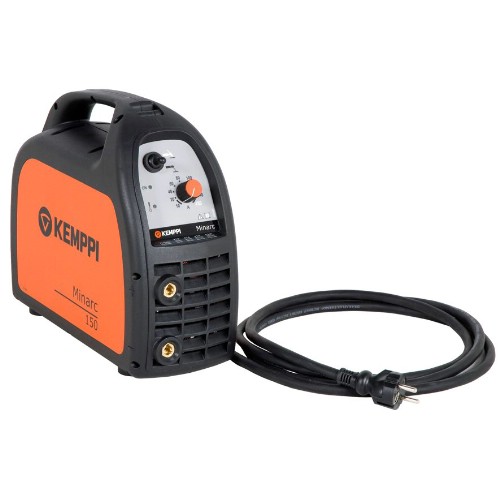

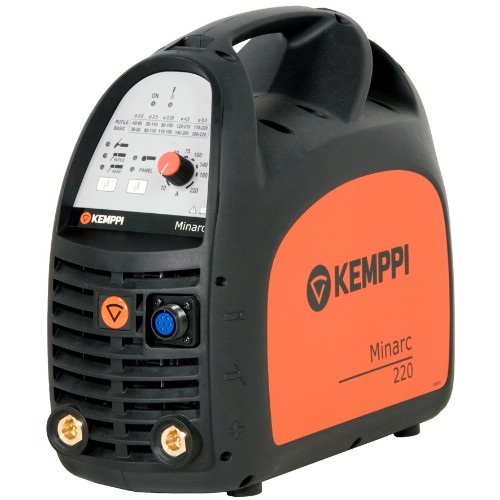

Small and light MMA machine for welding in workshops and at assembly workplaces, connects to 3-phase mains, 380V. Copes with large voltage variations and is well suited for field work with long splice cables or power plants. Restrictions of power plant type and power may apply when used with power plants. Error-free operation of the machine requires an electrical power plant with sufficiently high power. Recommended power is more than 15 kVA.
Possibility for TIG welding with contact ignition further increases usability, accessories for TIG welding are ordered separately Minarc is equipped with over- and undervoltage protection.
Minarc's good arc characteristics are due to high voltage reserve and automatic dynamics , which means that the arc remains stable in all positions, regardless of current and with long splice cables of up to 50 m. Automatic Hot start ensures perfect ignition of the arc every time. Minarc has an anti-freeze function to prevent the MMA electrode from sticking to the base material.
Delivery contents: 5 m mains cable without plug, return conductor and welding conductor.

The MinarcTig 250 is a light and compact 3-phase tig equipment that is well suited for assembly work and in the workshop. It has a clear LED display that shows exact parameters.
MinarcTig 250/250MLP are dual process machines, which means they can be used both as DC TIG welders and MMA welders.
In addition to the basic version, there is also the MLP model there the function panel has special functions that make welding easier and more efficient, e.g. Minolog and the user-friendly pulse welding function.
Both versions come with timers for gas pre-flow, gas after-flow, upslope and downslope.
The machine is delivered with shoulder strap, return conductor 5m 25mm² and 4.5m gas hose.
Areas of use: Installation, repair and maintenance, sheet metal industry, chemical industry and process industry.

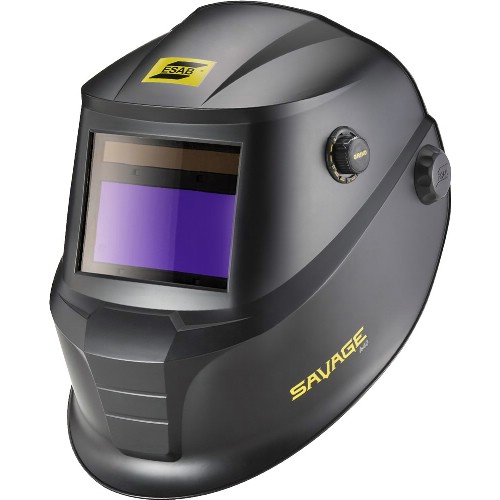

Welding helmet with a lightweight shell that protects against heat, sparks and spray. Suitable for MIG/MAG welding (GMAW), TIG welding (GTAW), plasma arc welding (PAW), electrode welding (SMAW/MMA), gas cutting, plasma cutting and grinding. Ergonomic 3-point head harness that is easily adjusted for optimal comfort and balance. Automatic blinding cassette, classification 1/1/1/2, DIN 9-13. Visible surface 100x50 mm. Knob for adjusting the degree of darkness on the outside of the helmet shell. Button for activating grinding mode (DIN 4) on the outside of the helmet shell. Controls for setting sensitivity and delay inside the helmet. Adjustable delay from dark to light 0.1-0.9 s. True Color technology for clearer vision and improved color definition. The cassette warns of low battery voltage. Powered by solar cells and 2 CR2450 lithium batteries.
Weight: 500 g.
Conforms to standards CE, EN379, EN175, ANSI, CSA, AS/NZS.

(HTML text not available)

Gas diffuser KEMPPI M10.
Fits GX203G35, GX203G5, GX303W35, GX303W5, GX205G35, GX205G5, GX305W35, GX305W5, GX305WS6*, GX303G35, GX303G5, GX403W35, GX403W5, GX305 G35, GX305G5, GX305GS6*, GX305GS8*, GX405W35, GX405W5, GX405WS6*, GX405WS8*, GX403G35, GX503W35, GX503W5, GX405G35, GX405G5, GX505W35, GX505W5, GX305GMN35, GX305GMN5, GX208GMN3 5, GX208GMN5, GX308GMN35, GX308GMN5, GX408GMN35, GX408GMN5, GX428W35, GX428W5, GX428W35N250 , GX428W5N250, GX528W35, GX528W5, GX528W35N250, GX528W5N250.

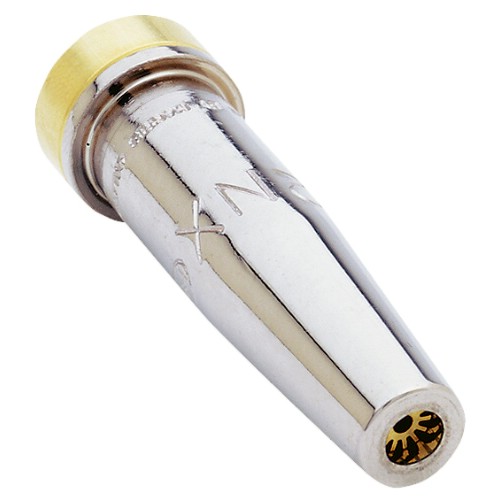

Screen nozzle for burners 62-5, 49-3 and S80 Injector. For normal preheating. Particularly suitable for scrap cutting with torch 62-5 or Harris Injector hand cutting torch.
Working pressure refers to: Fuel gas / Oxygen.
Propane NX: With normal preheating.< BR>Propane NFF: With extra preheating.

Grooved cleaning needles (13 pcs) in metal case for cleaning outlet channels in welding and cutting nozzles. 50 mm.

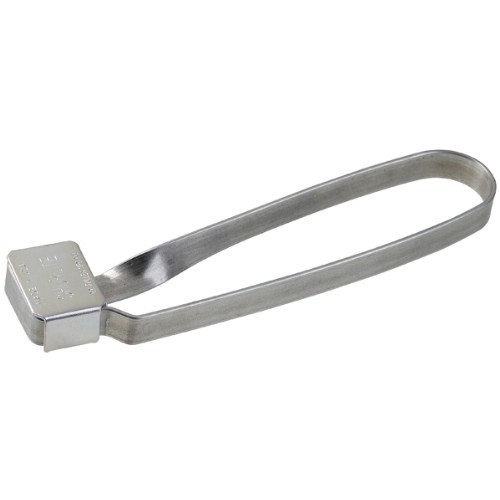

Gas lighters consist of a spring rod with replaceable flints.

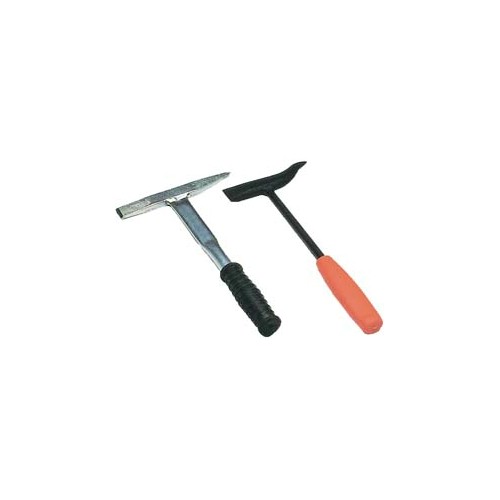

Slag hoe SH3 is recommended for normal slag and deburring. Double-sided with wide chisel and tip. The SH3 has a very easy-to-grip handle and is made of high-quality special steel.
Impact pickaxe SH2 is a double-sided chisel made of special steel with an easy-to-grip handle with a curved tip.

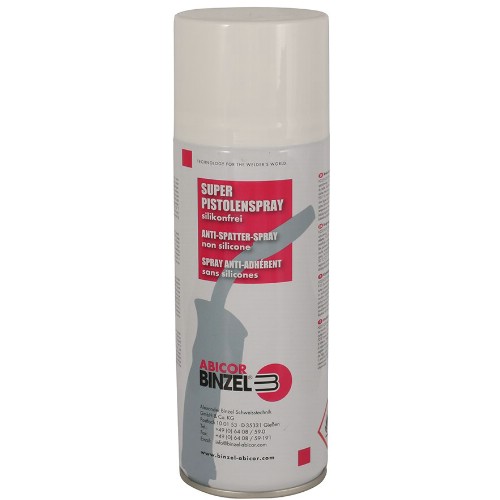

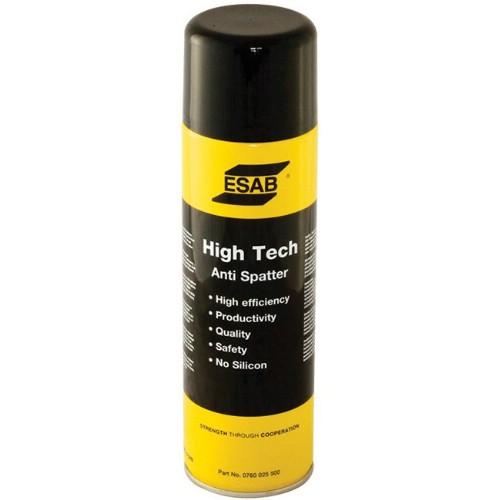

Spray that extends the life of fixtures, contacts and gas caps. Dries quickly. Creates a ceramic casing that can withstand high temperature (1300ºC). the glove.

(HTML text not available)

A copper-coated homogeneous wire for unalloyed and low-alloyed steel. For MIG/MAG welding with CO2 (C1) or mixed gas Ar/CO2 (M21) as shielding gas. Good feeding properties make the wire suitable for mechanized welding. Very good welding properties that give a constant result.
Power type:
DC+
Electrode class:
AWS: A5-18: ER70S-6< br>EN ISO 14341-A: G46 2 M21 3Si1
EN ISO 14341-A: G42 2 C1 3Si1
Typical chemical values ??in weld metal %:
C: 0.08 , Si: 0.86, Mn: 1.49, P: 0.010 S: 0.016
Mechanical values:
Strength: 475 Mpa
Strength at break: 570 Mpa
Elongation : 28%
Impact toughness:
Test temperature: -30° C
Impact toughness value Charpy V (J) (M21): 92
Impact toughness value Charpy V (J) (CO2) : 60
Gas/Gas flow: Ar/C=2 or pure CO2. 12-20 l/min.
Approvals: DnV, LR

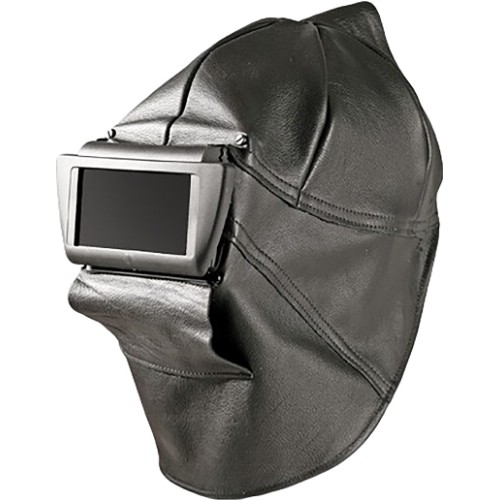

Specially designed for narrow places where it is not possible to work with a traditional welding mask. The material is made of genuine leather and therefore breathes and also adapts to the user's head shape. Effectively protects the welder's entire main area from sparks and splashes. Equipped with a neck-protecting leather neck piece.
Welding glass size: 60x110 mm, darkness DIN 9 Gradually opening glass hatch that can be used in a peek-a-boo position
Meets the standard for protective helmets CE / EN 175

Tungsten electrode for DC/direct current TIG welding in steel and stainless steel. Length 175 mm.
Purple marking.

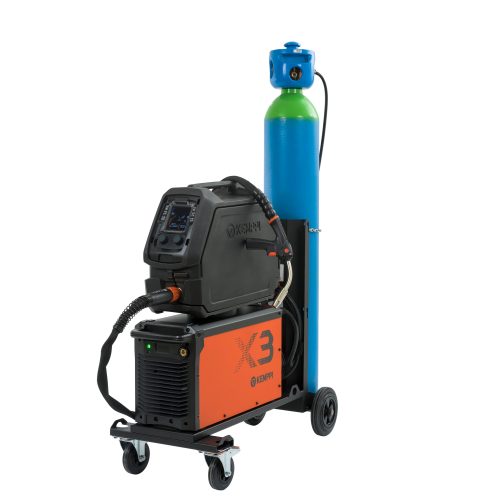

X3P FastMig Pulse – Kraftfull, Exakt och Effektiv

X3P FastMig Pulse är en avancerad svetsmaskin designad för högproduktiv och precisionskrävande svetsning i industrimiljöer. Med en robust konstruktion och pålitlig prestanda klarar den dagliga utmaningar inom produktionssvetsning.

Den pulserande svetsfunktionen ger en stabil ljusbåge, minskad värmetillförsel och förbättrad svetskvalitet, vilket är idealiskt för material med hög kravspecifikation. Det intuitiva ikonbaserade användargränssnittet gör inställningar snabba och exakta, vilket sparar tid och ger optimal kontroll över svetsparametrarna.

Med en svetskapacitet på 450A vid 60% intermittens levererar X3P FastMig Pulse hög prestanda för krävande svetsuppgifter. Maskinen levereras med HD300 trådmatarverk, utrustat med en dubbelväggig konstruktion och Duratorque-mekanism med 4-hjulsmatning för en jämn och exakt trådmatning. Den säkra lyftkonstruktionen möjliggör enkel upphängning och transport.

Ett omfattande utbud av tillbehör finns tillgängligt, inklusive 4-hjulsvagn för strömkällan, vagnar och skyddsmedar för trådmatarverket samt en upphängningsanordning för smidig och ergonomisk arbetspositionering.

X3P FastMig Pulse är det självklara valet för svetsare som behöver precision, tillförlitlighet och avancerad pulsteknik för att möta höga krav i en dynamisk produktionsmiljö.

X3S FastMig Synergic – Robust, Enkel och Exakt

X3S FastMig Synergic är en kraftfull och pålitlig svetsmaskin för industrin, utvecklad för att leverera högkvalitativa svetsar i krävande produktionsmiljöer. Med en robust konstruktion som tål dagliga stötar och påfrestningar är den idealisk för intensiv användning.

Det nya ikonbaserade användargränssnittet möjliggör snabb konfiguration och enkelt parameterval, vilket ger omedelbar kontroll över viktiga funktioner. X3S FastMig Synergic har en svetskapacitet på 420A vid 60% intermittens, vilket säkerställer hög produktivitet och tillförlitlighet.

Maskinen levereras med HD300 trådmatarverk, utrustat med en dubbelväggig konstruktion och en kraftfull Duratorque-mekanism med 4-hjulsmatning för jämn och exakt trådmatning. Trådmatarverket har även en säker lyftkonstruktion för enkel upphängning och transport.

Ett brett sortiment av tillbehör finns tillgängligt, inklusive 4-hjulsvagn för strömkällan, vagnar och skyddsmedar för trådmatarverket samt upphängningsanordning för optimal ergonomi och arbetsflöde.

X3S FastMig Synergic är den perfekta lösningen för professionella svetsare som kräver precision, styrka och effektivitet i sin produktion.

Master M 323 är en bärbar MIG/MAG-svetsmaskin med hög prestanda som ger 320 A vid 40 % intermittens. Det är en bärbar och lätt liten MIG/MAG-svetsmaskin som är redo för stora jobb överallt ute på fältet. Öka svetskvaliteten och spara tid med 28 inbyggda MIG/MAG-svetsprogram för Fe, Ss, AlMg5, AlSi5, CuSi3, CuAl8 och FC-CrNiMo som tillsatsmaterial. Dessutom innehåller den bärbara MIG/MAG-svetsmaskinen Master M 323 4 svetsprogram för specialsvetsprocessen "MAX Cool" som förenklar rotsträngssvetsning och spaltöverbryggning.

Maskinen levereras med gasslang och återledare. Svetspistol, vagn, matarhjulskit och ev. tillbehör säljes separat.

Master M-serien innehåller synergiska 353(Auto) och puls 355(Auto Pulse) MIG-modeller som förbättrar svetsprestandan vid industriella tillämpningar och säkerställer enastående svetskvalitet. Master M's digitala ljusbågskontroll, snabba inställningar och utmärkta effekt/vikt-förhållande sätter nya standarder för svetskvalitet, svetsproduktivitet och effektivitet i arbetet.. Du kan svetsa med gaskylda svetspistoler eller välja Master M's kylenhet som finns som tillval för ett integrerat vattenkylt paket som maximerar utnyttjandet av svetsströmmen på 350 A 40 % ED och möjliggör längre svetstider. Den inbyggda LED-arbetsbelysningen kan användas med eller utan nätanslutning och är en praktisk och användbar extra ljuskälla som förbättrar säkerheten och ökar produktiviteten i dåligt upplysta miljöer. Förbättra de nya nivåerna för svetsproduktivitet och kontroll genom att aktivera svetsprocesserna MAX-specialsvetsprocesser, som ger en extra ökning av svetsprestanda för utmanande svetsning av stål, rostfritt stål och aluminium.

Anslutningsspänning 3-fas 50/60 Hz: 380 - 460 V ±10 %
Säkring: 16 A
Uteffekt 40 % ED: 350 A (MMA 330 A)
Uteffekt 60 % ED: 280 A
Uteffekt 100 % ED: 220 A
Trådmatarverk: 4-hjuls singelmotor
Trådmatningshastighet: 0,5 - 25 m/min
Anslutningseffekt vid max. ström: 14 kVA
Rekommenderad elverkseffekt (min.): 20 kVA
Pistolanslutning: Euro
Trådbobinens vikt (max.): 20 kg
Trådbobinens diameter (max.): 300 mm
Tillsatsmaterial, Ss: 0.8 - 1.2 mm
Tillsatsmaterial, Al: 0.8 - 1.2 mm
Tillsatsmaterial, Fe: 0.8 - 1.2 mm
Tillsatsmaterial, MC/FC: 0.8 - 1.2 mm
Diameter på matarhjul: 32 mm
Svetsströms- och spänningsområde
MIG: 15 A/10 V–350 A/45 V
TIG: 15 A/1 V–350 A/45 V
MMA: 15 A/10 V–330 A/45 V
Omgivningstemperatur: -20 till +40 °C
Yttermått L × B × H: 602 x 298 x 447 mm
Vikt (inga tillbehör): 27 kg
Skyddsklass: IP23S
Standarder: IEC 60974-1, -10
EMC-klass: A
Förvaringstemperaturområde: -40 till +60 °C
Skyddsgastryck (max): 0,5 MPa

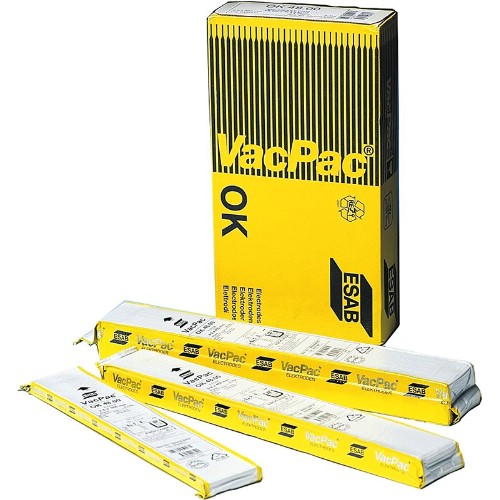

Very easily welded omni-current electrode. Excellent thin plate electrode and the good flowability mean that both butt and fillet welds have an even and beautiful string appearance. Lightly ignites even with small transformers with 50 V open-circuit voltage (OCV). OK 43.32 is recommended for ordinary carbon steel, as well as for ship steel of A quality in ordinary strength class.
Return: 95%
Current type: DC+(-), AC , open-circuit voltage (OCV) 50 V
Examples of corresponding additive materials:
TIG: OK Tigrod 12.64 MAG: OK Autrod 12.50, 12.51, 12.64 Tube wire: OK Tubrod 15.14; PZ6113
Electrode class:
SFA/AWS A5.1: E6013 EN ISO 2560-A: E 42 0 RR 12
Typical values ??of solid welds:
Chemical composition %:
C: <=0.12, Si: 0.55, Mn: 0.5
Mechanical values:< BR>Strength (ReL): 460 MPa
Strength of rupture (Rm): 550 MPa
Elongation (A5): 26%
Impact toughness, KV:
Test temperature/Impact toughness value:
+20°C/65 J, 0°C/=>47 J
Approvals:
ABS: 2, BV: 1, DB: 10.039.36, DNV: 2, GL: 1, LR: 1, VdTÜV: 00621, CE: EN13479, RS: 2

Made of steel, high-quality deep-press plate. Equipped with shut-off valve with outlet thread POL (0.88"-14 NGO left) and safety valve. A bottle primarily for industrial use.
Gas type: Propane
Height: 128 cm
Diameter: 380 mm
Weight empty: 41 kg
WEIGHT filled: 86 kg

High-quality nut grain/nut split glove. Flexible and durable. Extra long collar, 15 cm. Reinforced seams, sewn with Kevlar thread. Walnut split backhand. All-round glove for work where heat-resistant gloves are needed, e.g. welding.

Approved/Certified according to:
CE category 2
EN 420:2003+A1:2009
EN 388:2016 2132X
EN 12477 :2001+A1:2005 Type B
EN 407:2004 41314X
EN 1149-2:1997

(HTML text not available)

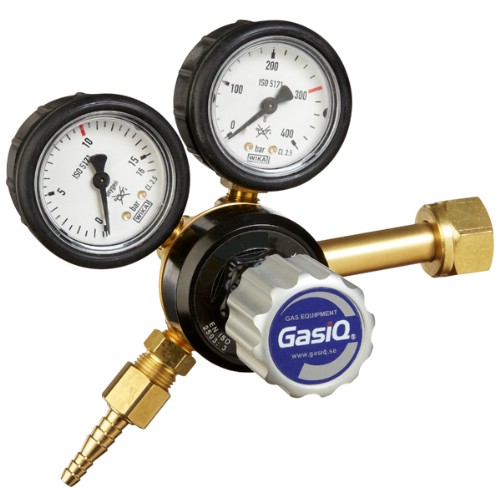

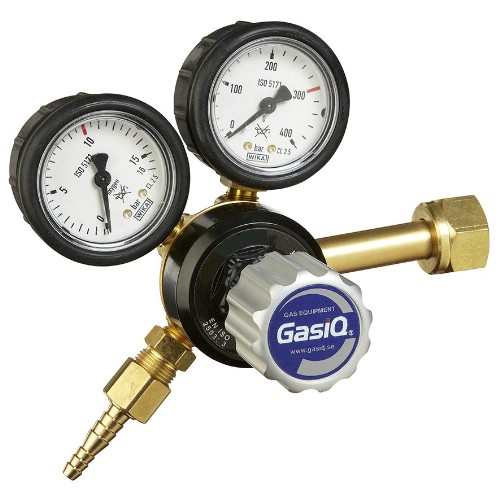

High-quality regulator with large capacity, (class 3 according to ISO 2503). Durable, robust and has an ergonomically designed control knob for precise adjustment of the gas flow. Pressure gauges with rubber protection and built-in preset safety valve. Supplied with hose socket for hose 5.0/6.3 mm internal diameter and extra gaskets.
Max inlet pressure: 200 bar.
Max working pressure: 10 bar .
Connection inlet: W24,32x14/1".
Connection outlet: G 3/8".

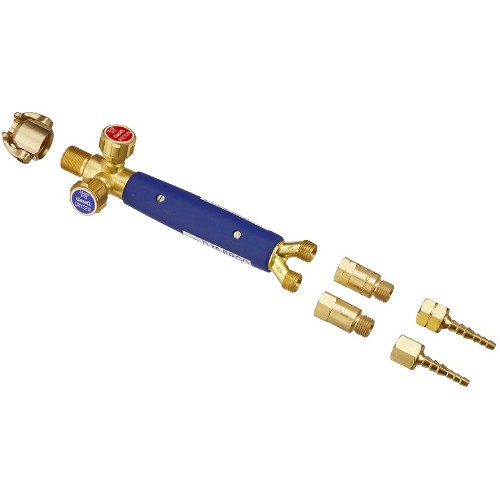

The cutter for the D75 system which consists of: handle complete with non-return valves, cutting insert with lever, nozzle holder 90°, cutting nozzles, (3-8 mm and 8-20 mm) and cutting table.

Kemppis S-line-svetshjälmar erbjuder högkvalitativt skydd och prestanda för både proffs och hobbyanvändare. Med automatisk nedbländning och justerbara ljussensorer ger hjälmarna klar sikt och bekväm användning utan att behöva tas av mellan arbetsmomenten. Vision+ funktionen ger verklighetstrogen skärpa som minskar ögontrötthet. Serien inkluderar modellerna S1020, S1030 och S1040, som alla har optisk klassning 1/1/1/2 och pålitligt skydd. Passar perfekt på arbetsplatsen, hemma i garaget, på skolan, mm.

Produktinformation

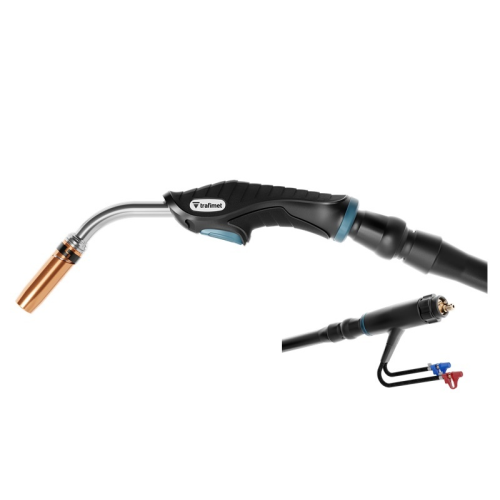

ERGOPLUS-brännarserien har uppdaterats, vilket ger förbättringar av svetsprestanda: - Ergonomisk design med naturlig triangulär greppform. - Dubbel kulled avlastar handled och axlar. - Löstagbart pistolhandtag (ingår i varje förpackning) - Skyddande kabelhölje med lägre ytfriktion för mjuka rörelser. - Tätad mikrobrytare (skyddsnivå IP67), - Ny flexibel eurokontakt. - Bättre kylning, lägre temperatur på brännarhuvudet. - Minskad förbrukning av slitdelar. Reservdelar är kompatibla med de vanligaste europeiska märkena.

Copper-coated 0.5Mo-alloyed welding wire for TIG welding of low-alloy creep-resistant steels containing 0.5% Mo such as DIN 15Mo3, 17Mn4 or equivalent according to other standards. OK Tigrod 13.09 is used in constructions such as pressure vessels and boilers with working temperatures up to 500°C. The wire is also suitable for welding high-strength steels such as Weldox 500 and similar qualities.
Type of current:
DC-
Example of the corresponding additive material:
MAG: OK Autrod 13.09
MMA: OK 74.46, PZ KV2
Tube wire: OK Tubrod 14.02, PZ 6202
Electrode class:
SFA/AWS A5.28: ER80S -G
EN 1668: W2Mo
EN 12070: W MoSi
Typical values ??of all-weld material:
Chemical composition %:
C : 0.1, Si: 0.5, Mn: 1.1, Mo: 0.5
Mechanical values:
Strength (Rp0.2): 480 MPa
Breaking strength (Rm): 565 MPa
Elongation (A5): 28%
Impact toughness, KV:
Test temperature: +20°C, -20°C, -40°C , -60°C
Impact strength value: 180 J, 130 J, 90 J, 25 J
Approvals:
DB: 42.039.08, DnV: IIIYMS, UDT: DIN 8575 , Ü: 42.039/2, VdTÜV: 04950

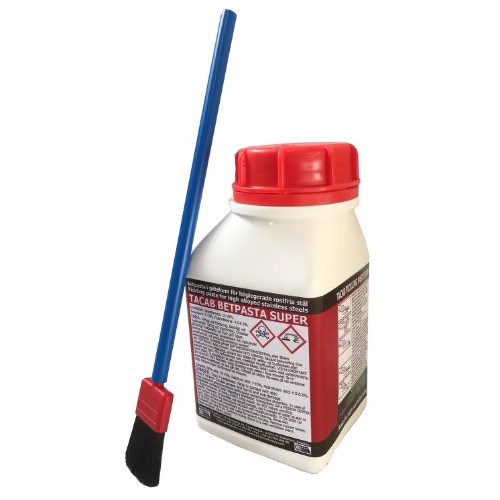

Used for pickling stainless steel types. The all-round paste that copes with most things except for the most highly alloyed steel types. The stain paste is applied with the supplied brush. After the pickling and copious rinsing with water, the corrosion resistance of the welded area is restored.
Working temperature: Range from +5°C to +40°C.

Orange, smooth outer rubber of SBR/NR with good abrasion and weather resistance. Spiralized synthetic inserts, inner tube of NBR/HSBR. Resistant to butane and propane, LPG (Liquid Petroleum Gas) and gas mixtures such as MPS and CNG. Meets the requirements according to EN 559 and the requirements of the explosives inspection.
Marking Semperit S EN 559 2 mPa (20 bar) dimension -30°C.
Area of ??use: Transport of LPG in gaseous form for gas-powered kitchens, lamps, refrigerators and for gas burners in laboratories and in industry when welding and cutting.
Temperature range: - 30°C - +70°C
*Supplied on the coil.

"Elga" Handle.

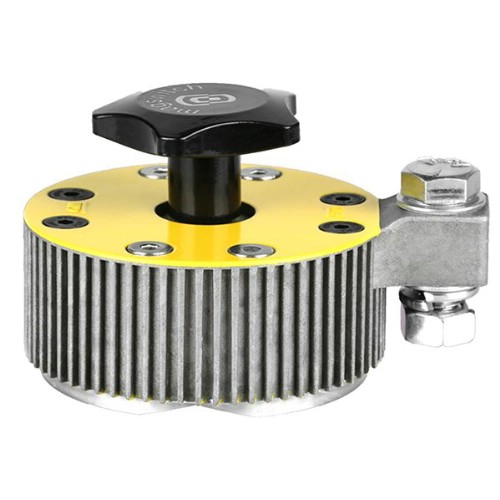

Magnetic ground clamp for welding. Uses a powerful magnetic field that is turned on/off by turning the handle 180°. Sweating can be started quickly and easily. Stays clean, when the magnet is turned off the metal residue falls off and the magnet can be easily wiped clean. Can be attached to both pipes and flat surfaces.

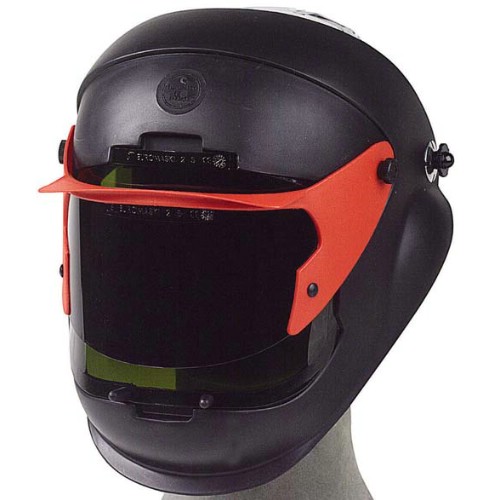

Welding helmet with flip-up visor. The helmet shell protects the welder's face, neck and ears against welding spatter and radiation. Adjustable headband makes it easy for the welder to find the right fit. Choose field of view 60x110 or 90x110 mm. Supplied with DIN 11 mineral glass.
Weight: 420 g.
CE approved according to EN 175.

(HTML text not available)

CuNi-alloyed LMA all-current electrode which produces a weld metal with good corrosion resistance against salt water and flue gases, and was used for weather-resistant steels and for structural steel in ships. The weld metal has excellent mechanical properties. OK 73.08 is particularly suitable for welding armor steel in icebreakers and other ships operating in conditions where protective paint wears away. Intended for e.g. CORTEN, Domex 350W, UHBCCP etc. The good mechanical strength properties also make it suitable for welding general high-strength steels as well as ordinary and high-strength ship steels of A, D and E quality.
Yield:
125%
Current type:
DC+, AC, open-circuit voltage (OCV) 65 V
Example of corresponding additive material:
TIG: OK Tigrod 13.26
MAG : OK Autrod 13.26
Tube wire: OK Tubrod 14.01
Electrode class:
SFA/AWS A5.5: E8018-G
EN ISO 2560-A: E 46 5 Z B 32
Typical values ??of all-weld material:
Chemical composition %:
C: 0.06, Si: 0.4, Mn: 1.0 , Ni: 0.7, Cu:0.4
Mechanical values:
Strength (Rp0.2): 500 MPa
Breaking strength (Rm): 590 MPa
Elongation (A5): 27%
Impact strength, KV:
Test temperature/Impact strength value: -20°C/160 J, -40°C/130 J, -50°C/70 J
Approvals:
ABS: 3H5, 3Y, BV: 3Y HH, DB: 10.039.20, DNV: 3 YH10, GL: 3YH15, LR: 3, 3Y H15, RS : 3YHH, Sepros: UNA 409819, VdTÜV: 02115, CE: EN 13479

For central filling. Made of sheet steel and painted blue. Inspected and approved by relevant authorities. Self-closing outlet valve with thread M14 x 1.5.
Gas type: Propane.
Height: 22 cm.
Diameter: 215 mm.
Weight filled: 5.7 kg.

Premium quality TIG welding glove. Made of goat grain and goat split and sewn with Kevlar thread.

Approved/Certified according to:
EN ISO 21420:2020
EN 388:2016 2132X
EN 407: 2020 41214X
EN 12477:2001+A:2005: (Type B)

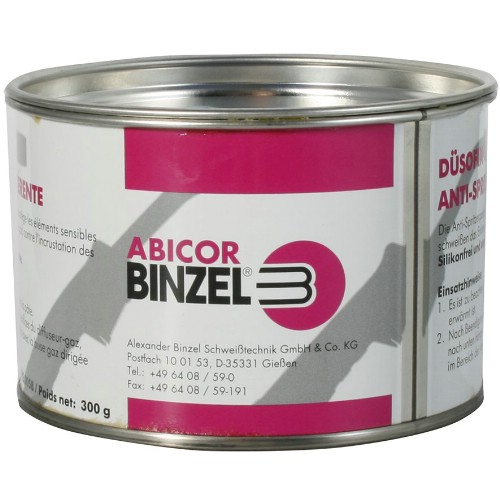

For MIG-MAG welding guns. Keeps contact pipes and gas nozzles clean from welding spatter. The paste is silicone-free and long-lasting. Dip the nozzle in the paste, Supplied in a can.

(HTML text not available)

The most widely used alloy type for welding aluminum alloys. OK Autrod 5356 is a magnesium alloy aluminum wire for MIG welding of salt water resistant Al-Mg alloys containing up to 5%Mg, but was also used for its relatively high strength. Alloys of type 5XXX, which are welded with OK Autrod 5356 and give a weld metal with more than 3% Mg, can be sensitive to cracks caused by stress corrosion at a working temperature above 65°C. The alloy cannot be heat treated.
Shield gas:
Ar, Ar/He mixtures or He (I1-I3)
Power type:
DC+
Example of corresponding additive material:
TIG: OK Tigrod 18.15
Electrode class:
SFA/AWS A5.10: ER5356
EN ISO 18273: S Al 5356 (AlMg5Cr(A))
Typical values:
Composition of wire %:
Si: <0.25, Mn : 0.15, Mg: 5.0, Fe: <0.4, Al: Residue
Mechanical values ??of all-weld material:
Strength (Rp0.2): 120 MPa
Breaking strength (Rm): 265 MPa
Elongation (A5): 26%
Approvals:
ABS: ER 5356 for dim. 1.2 mm, CWB: AWS A5.10 (Item number ending with A), DB: 61.039.01, DNV: 5356 (WB), GL: S-AlMg 5, LR: WB/I-1, VdTÜV: 04664 , Ü: 61.039, CE: EN 13479

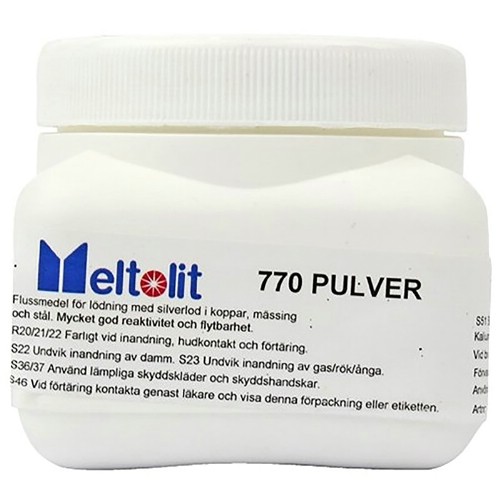

Flux for soldering with silver solder in copper, brass, steel and stainless steel. Very good reactivity and flowability.
Activity range: 550-800°C.

Rutile tube electrode intended for welding in unalloyed, manganese-alloyed and general structural steels with mixed gas as shielding gas. FAMILIARC DW-A50 is developed for welding in all positions and is also an excellent choice when welding root strings against ceramic root supports or when welding smaller a-dimensions and with base material thickness down to 3 mm. FAMILIARC DW-A50 is a highly productive all-round wire, which welds with a stable and quiet arc that provides a self-dissolving slag blanket with minimal weld spatter and an even and smooth weld bead surface. FAMILIARC DW-A50 has good and stable mechanical values ??and a hydrogen content of less than 5ml/100 g weld material. FAMILIARC DW-A50 was used in many different types of production, some examples are shipbuilding, bridge constructions, general steel constructions, etc.
Material class: VM85
Operating current: 150 -300 A
Voltage: 18-32 V
Electrode class:
EN ISO 17632-A-T 42 2 P M 1 H5
AWS A5. 20 E71T-1M
80%Ar - 20%CO2

The cutter for the S-80 system consists of: handle complete with non-return valves, cutting insert with lever, nozzle holder 90°, cutting nozzles, (10-25 mm and 25-50 mm) and cutting table.
